Product Details

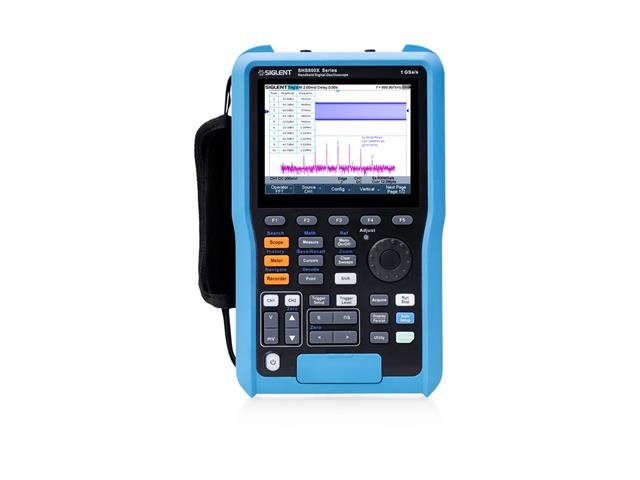

Siglent Handheld Oscilloscope 2Ch 100Mhz 1Gsa/s , Display:5.6" Tft-lcd (640X480) , Memory Depth:12mpts , Serial Trigger & Decoder:iic, Spi, Uart, Can, Lin , I/o:usb Host/device , Max I/p Voltage Meter:cat Iii 300 Vrms, Cat Ii 600 Vrms , True Rms Dmm
HANDHELD OSCILLOSCOPE
Overview
Key Features
Intelligent triggers: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
6000 counts Digital Multimeter, Support DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity test.
1 Mpts FFT: Support Peaks and Markers
5.6-inch TFT-LCD display with 640 * 480 resolution
Specifications
|
|
| Channels | 2 |
| Sample rate | 1 GSa/s (single channel) 500 MSa/s (dual channel) |
| Memory depth | 12 Mpts (single channel) 6 Mpts (dual channel) |
| Waveform capture rate | 100000 wfm/s, normal mode (400000 wfm/s, sequence mode) |
| Vertical resolution | 8 bits |
| Serial trigger/decode | IIC, SPI, UART, CAN, LIN |
| Interfaces | USB Host/Device |
| Sample logger |
Yes
|
|
|||||||||||||||||||||||
Downloads
Additional Information
| Device | Oscilloscope |
| Type | SIGLENT | HANDHELD | OSCILLOSCOPE |
