Product Details

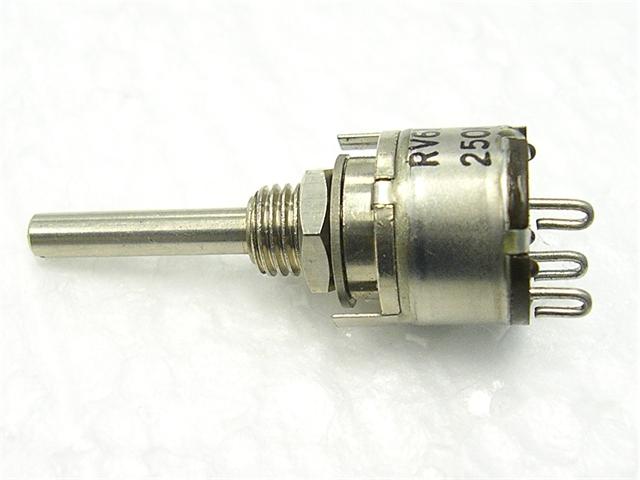

Single turn Conductive Plastic Rotary Control Potentiometer, Model : RV6NAYSD, Size 12.7mm dia. • J-Hook • ½W @ 70°C • 500kΩ • ±10% • 1 Turn
Downloads
Additional Information
| Model | RV6NAYSD |
| Device | Conductive Plastic Rotary Control |
| Type | Single turn |
| Size | 12.7mm dia. |
| Termination | J-Hook |
| Tolerance | ±10% |
| Tolerance Code | K |
| Element Type | Conductive Plastic |
| No. of Turns | 1 Turn |
| Mechanical Life | 50 000 Cycles |
| Mounting Style | Bush Mount |
| Shaft Diameter | 3.18mm |
| Shaft Type | Metal |
| Shaft Length | 22.2mm |
| Law Type | Lin |
