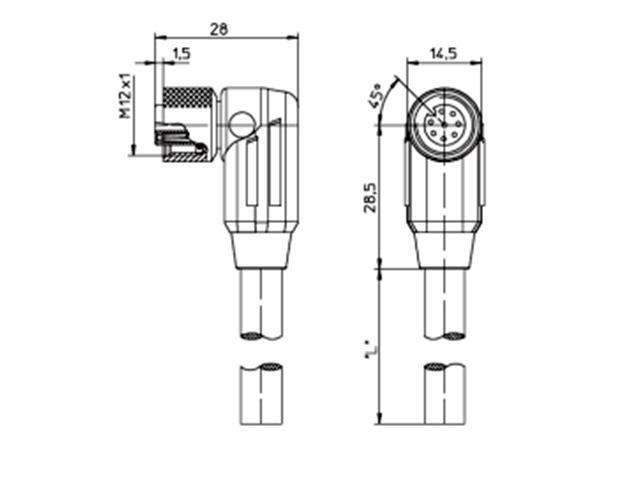

| Cordset Shielded M12 A Code Female Right Angled. 8 Pole 2m Pure Cable IP67 (49280) |
Environmental
- Degree of Protection : IP 67 / NEMA 6P
- Operating Temperature Range : -25°C (-13°F) / +80°C (+176°F)
Mechanical
- Housing / Molded Body : TPU
- Insert : TPU
- Contact : CuSn, pre-nickeled and 0.8 microns gold-plated
- Coupling Nut : CuZn, nickel-plated
- Shield Sleeve : CuZn, nickel-plated
- O-ring : FKM
Electrical
- Contact Resistance : ≤5 mΩ
- Nominal Current at 40°C : 4 A
- Nominal Voltage : 8 poles 30 V
- Rated Voltage : 8 poles 36 V
- Test Voltage : 5–8 poles 1.5 kV eff. / 60 s
- Insulation Resistance : > 10 power 9Ω
