Product Details
Reyee Wireless Ceiling Mount WiFi Access Point, Omni-Directional Antenna 5GHz@4.58dBi~2.4GHz@3.13dBi, Data Rate:5GHz@1201Mbps~2.4GHz@573Mbps, Optimal Coverage:125㎡, PSU12V1.5A, 802.3af (PoE), WiFi6 AX1800, AI Wireless Optimization (WIO), 175x39mm
Wireless Ceiling Mount WiFi Access Point
Features
- Gigabit wireless ceiling-mount AP with dual-radio performance
- Support for Reyee Mesh and AI Wireless Optimization (WIO)
- Easy installation, compact size
- New circular aesthetics, more in line with the hotel decoration style
- Powerful AP standalone portal via Ruijie Cloud
Specifications
Radio design
- Dual-radio
4 spatial streams
● 2.4 GHz: 2 x 2, MU-MIMO
● 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate
- 1774 Mbps
6 GHz wireless data rate
- No
5 GHz wireless data rate
- 1201 Mbps
2.4 GHz wireless data rate
- 573 Mbps
Antenna
Antenna
- 2.4 GHz: 2 built-in omnidirectional antennas
5 GHz: 3 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (diameter x height)

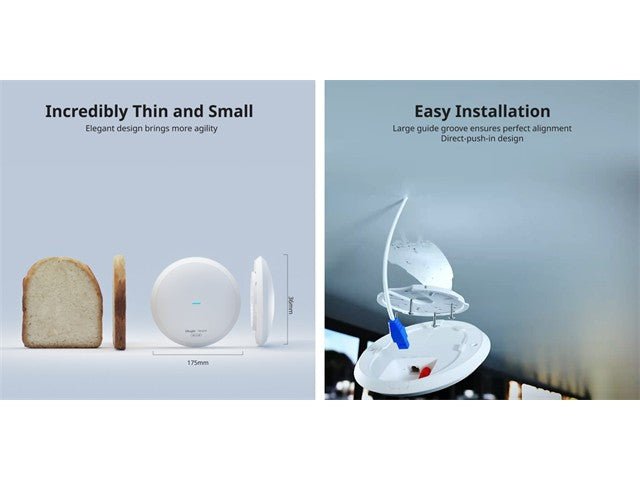

- Ø175mm x 39mm (Ø6.89 in. x 1.54 in.) (excluding the mounting bracket)
Color
- White
Weight
- ≤ 0.4 kg (0.88 lbs) (without packaging materials)
Port Specifications
Number of 10/100/1000BASE-T ports
- 1
Power Supply and Consumption
Power supply
- ● DC power adapter
● PoE/PoE+
Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply
- Yes, one DC power connector (12 V, 1.5 A)

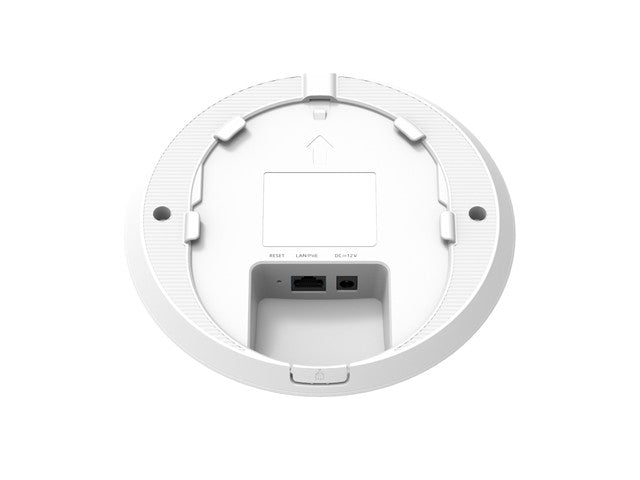

Dimensions of the DC connector
- Outer diameter: 5.5 mm (0.22 in.)
Inner diameter: 2.1 mm (0.08 in.)
Length: 10 mm (0.39 in.)
PoE budget
- No
Maximum power consumption
- 12.95 W
Environment and Reliability
Operating temperature
- 0°C to 40°C (32°F to 104°F)

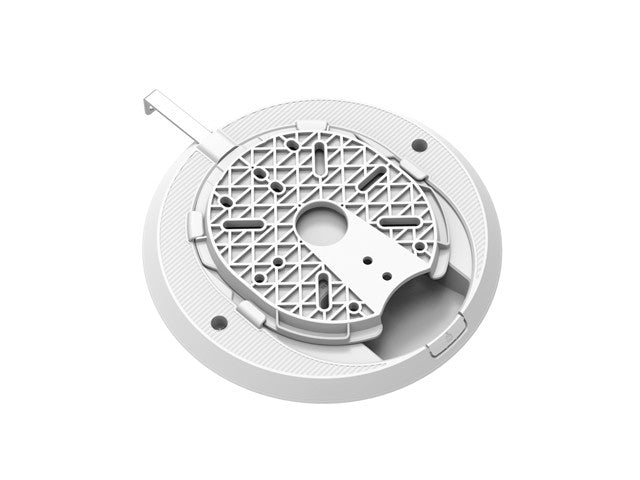

Mounting options
- Ceiling/Wall
IP rating
- IP41
Software Specifications
WLAN
Maximum number of associated wireless clients
- 64 (2.4 GHz)
256 (5 GHz)
256 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
- 300
Downloads
Additional Information
| Device | Access Point |
| Type | Wireless | Ceiling Mount | WiFi |
