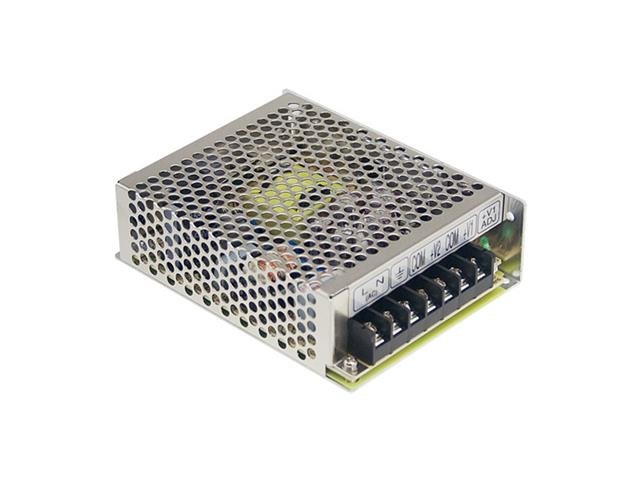

Meanwell Power Supply 50W Dual Output: CH1:5V 6A Current Range:0.3 ~ 6A , CH2:12V 2A Current Range:0.3 ~ 3A , I/P:88 ~ 264VAC , 99x97x36mm , 0.41Kg
Power Supply 50W Dual
Specifications
|
Type
|
Enclosed
|
|
Number of Outputs
|
2
|
|
Voltage - Input
|
88 ~ 264 VAC, 125 ~ 373 VDC
|
|
Voltage - Output 1
|
5V
|
|
Voltage - Output 2
|
12V
|
|
Current - Output 1
|
6 A
|
|
Current - Output 2
|
2 A
|
|
Power (Watts)
|
54w |
|
Applications
|
ITE (Commercial)
|
|
Voltage - Isolation
|
3 kV
|
|
Efficiency
|
79%
|
|
Operating Temperature
|
-25°C ~ 70°C (With Derating)
|
|
Features
|
Adjustable Output, Universal Input
|
|
Mounting Type
|
Chassis Mount
|
|
Size / Dimension
|
3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm)
|
|
Approval Agency
|
CB, CE, cURus, TUV
|
|
Minimum Load Required
|
Yes
|
Downloads
Additional Information
| Device | Power Supply |
| Type | 50W | Dual |
