Product Details

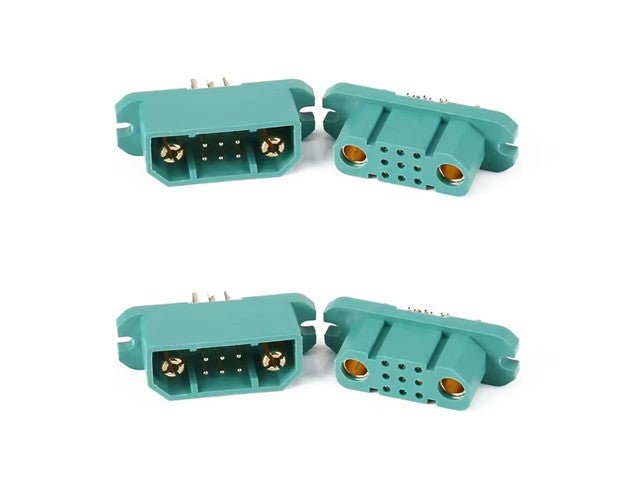

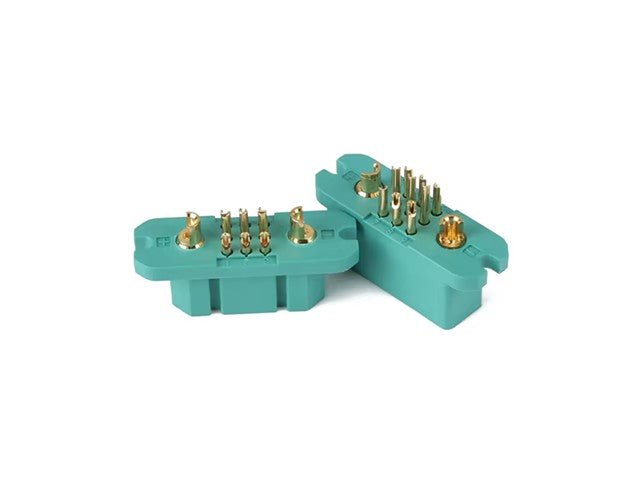

VTOL MPX Battery Connector Pair 2 Pole 30A Plus 9 Signal Contacts 5A Max Rating
Pair 2 Pole Battery Connector
Specifications
- Item Name: 9+2 VTOL Connector
- Weight: 9.2g/pair(Male+Female)
- Type: JX-9
- Metal Material: Brass Gold Plated
- Plastic Material: PA
- Instantaneous Current: 60A(Large)/7A(Small)
- Rated Current: (Large)30A/(Sma1l)5A
- Rated Voltage: DC 500V
- Contact Posture Resi: 0.3mΩ
- Soft Flame Retardant: lUL94 V0
- Operating Temperature: -20C~120C
- Recommended Use Times: 1000 Times
- Cable Specification: (Large)12AWG/(Small)20AWG
Additional Information
| Device | Connector |
| Type | Pair | 2 Pole | Battery |
