Product Details

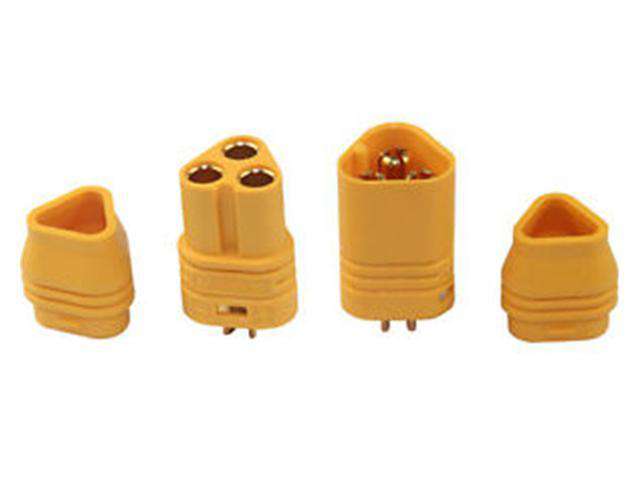

MT30 Battery Connector Compact 3pole 30A - Cable End Polarized Male/Female 2MM Gold Plated Bullet Terminals W/Snap-On Insulator
Overview
Features
Specification
- Banana Plug : 2mm
- Body Material : Brass and gold-plated
- Insulation Material : Nylon/PA
- Internal Resistance : 1.5mΩ
- Max. RC/MC : 15A/25A
- Weight : 3.0g/pair
- Pulling Force/500 : 25N
- Temperature Resistance : -20°C~120°C
- Recommend Use : 1000 times
- Recommend Cable Spec : 18AWG
- Recommend Soldering Spec : 350°C/2S
