Product Details
FTTH Fiber Optic Toolkit Professional
Ftth Fiber Optic Toolkit Professional
Overview

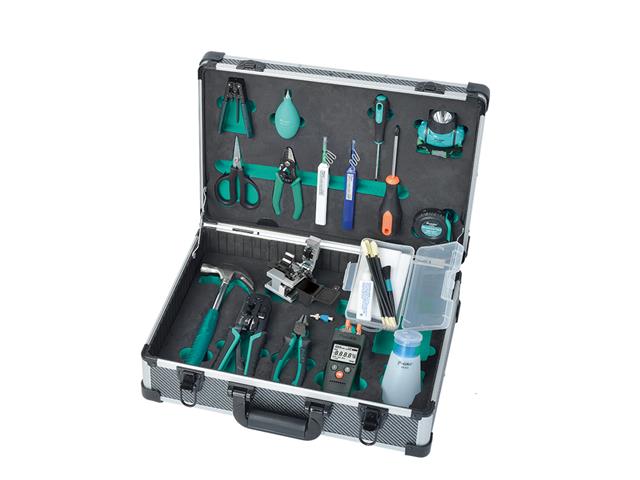

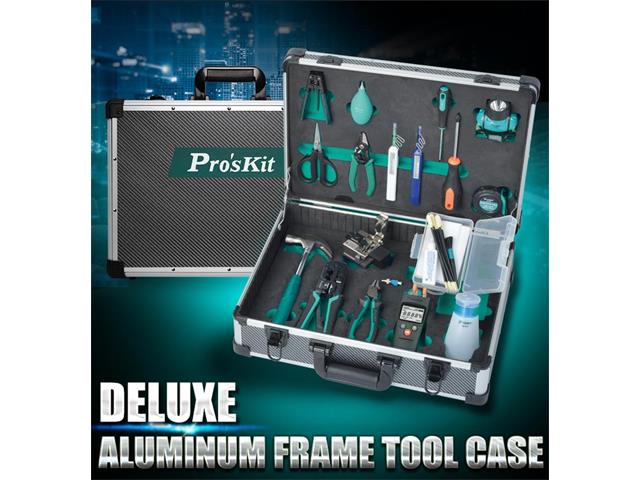

Professional FTTH tool kit contains the most essential tools for fiber optic fusion splice, Mechanical Splicing and patch cord termination procedure. Ideal for fiber optic installation and maintenance works.
Includes 4 in 1 fiber optic power mulitmeter, 1.25mm/2.5mm cleaning tool, fiber stripper, drop cable stripper, kevlar scissors, optical Fiber Cleaver, 6P/8P crimper, LED head light.
Features

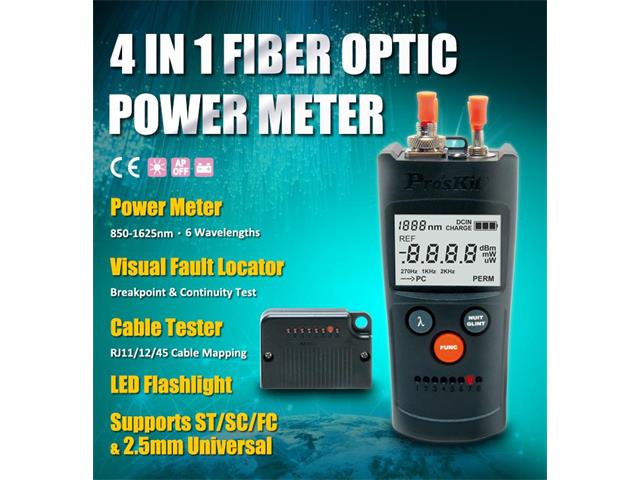

PRK MT-7602 4 in 1 fiber optic power mulitmeter
- Fiber optic power meter
- Cable tester
- Visual fault locator
- LED flashlight
PRK FB-C008/FB-C009 1.25/2.5mm One click cleaner
- 800 cleans lot FC/PC, ST, Sc or LC Connectors
- Easy pushing motion
- 1800 rotates cleaning system
- Extendable nozzle
- Indication Window

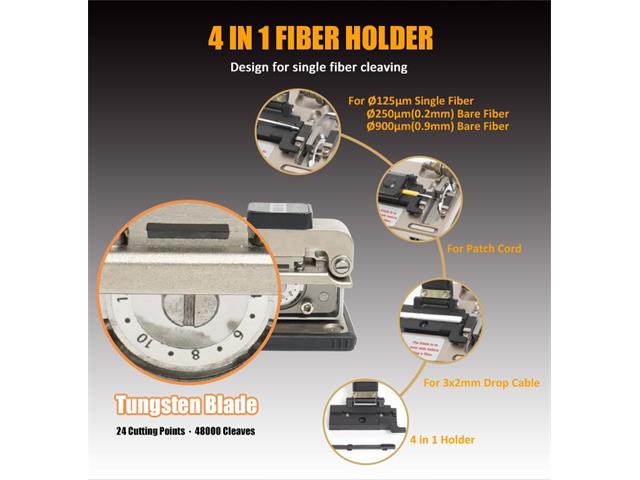

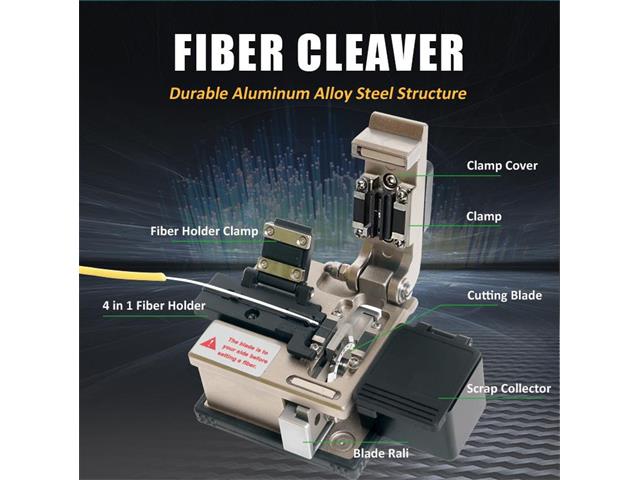

PRK FB688 Fiber Cleaver
- 16 Cutting Location for each blade. Blade life up to 48000 times
- Body : Zinc alloy anodic treatment
- Dimensions: 62x60x56mm
- Blade : Tungsten
- Cladding Diameter : 125 µm
- Blade Dimension : 20xt2.0mm
- Cleave Length : 1020 mm
- Cleave Angle : 0.8°
PRK CP-376TR 4P/6P/8P Telecom Crimping Tool
- Body : S45C
- Handle : Black:T.P.R Green:PP
- Application : 8P8C/RJ45, 6P2C/6P4C/6P6C RJ11/RJ12
- Modular Plugs, RJ22 4P2C/4P4C handset modular plugs
CP-FB01 FTTH Drop Cable Stripper
- Body: Zinc Alloy Steel
- Blade : CR12
- for 3.1x2.0mm Drop Cable
PRK 8PK-326 Fiber Optical Stripper
- Strips 125 micron glass fiber with 250 micron buffer coating
- Material: S50C
Specifications
Contents
- PRK MT-7602 : 4 in 1 Fiber Optic Power Mulitmeter
- PRK FB-C008/FB-C009 : 1.25/2.5mm One click Cleaner
- PRK FB-1688 : Fiber cleaver
- PRK CP-376TR : 4P/6P/8P Telecom Crimping Tool
- PRK CP-FB01 : FTTH Drop Cable Stripper
- PRK 8PK-326 : Fiber Optical Stripper
- PRK 1PK-067DS : Dual Color Side Cutting Plier (165mm)
- PRK 9SD-207B : Pro-Soft Screwdriver (+#2 6x100mm)
- PRK 9SD-201A : Pro-Soft Screwdriver (-3.0 3.0x75mm)
- PRK DK-2043 : Fiber Optic Kevlar Cutter
- PRK DK-2060 : Auto Stop Measuring Tape
- PRK MS-018 : Leak proof dispenser pump bottle
- PRK FL-528 : 1W LED Head Light
- PRK PD-2612 : 8 OZ Curved Claw Hammer
- PRK SB-1592 : Component Storage Box(145x92x40mm)
- PRK MS-153A : Bulb Blower (Φ42mm)
- PRK 8PK-C002 : Foam Swabs Cleaning Kit
- PRK 5MT-7601-LC : Fiber Optical Power Meter LC Adaptor
- PRK 9PK-153 : Brush
Downloads
Additional Information
| Device | Tool Kit |
| Type | Fiber Optic | Professional |
