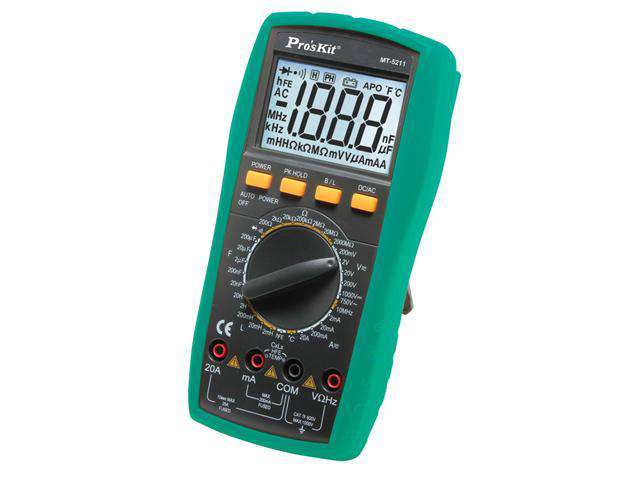

PRK MT-5211

 MT-5211 is a Fully featured multimeter with LCR meter. Ideal for a wide variety of electrical and electronic testing applications. Comply with CAT IV 600V.



Fully Featured Multimeters

• Design for measuring AC/DC Volts, Current, Resistance, Frequency, Temperature, Continuity, Diode and Transistor.

Versatile, safe and Accurate

• All of its inputs are protected to CE, IEN61010-1 CAT IV 600V safety rated and overload protection ensures uninterrupted operation and long life.Dual slope A/D conversion.

Large LCD w/ backlight

• LCD display with backlight allows for easy reading even in dark area.

Extra funcions

• Continuity with beeper, Diode test, Data hold, Auto power off, Low battery indication, Overload indication, Backlight, Transistor Tester.

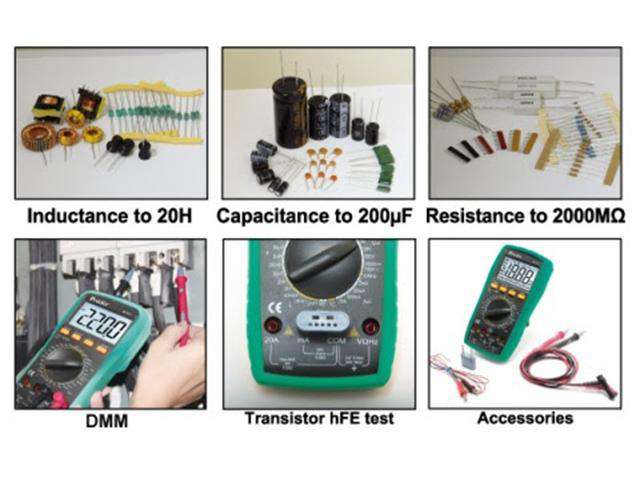

LCR Meter

• Inductance to 20H
• Capacitance to 200µF
• Resistance to 2000MΩ

• DC Voltage (V)

  • 200mV/2V/20V/200V±(0.5%+3d)
  • 1000V±(1.0%+5d)

  AC Voltage (V)

  • 200mV±(1.2%+3d)
  • 2V/20V/200V±(0.8%+5d)
  • 750V±(1.2%+5d)

  DC Current (A)

  • 2mA/20mA±(0.8%+3d)
  • 200mA±(1.2%+4d)
  • 20A±(2.0%+5d)

  AC Current (A)

  • 2mA/20mA±(1.0%+5d)
  • 200mA±(2.0%+5d)
  • 20A±(3.0%+10d)

  Resistance (Ω)

  • 200±(0.8%+5d)
  • 2K/20K/200K/2MΩ±(0.8%+3d)
  • 20MΩ±(1.0%+15d)
  • 2000MΩ±(5.0%(reading-10)+20d)

  Capacitance (uF)

  • 20nF/200nF/2uF±(2.5%+20d)
  • 20uF/200uF±(5.0%+5d)
  • Inductance (L)
  • 2mH/20mH/200mH/2H/20H±(2.5%+20d)

  Temperature (T)

  • <400°C±(1.0%+4d)
  • >400°C±(1.5%+15d)
  • Frequency (Hz) : 2k/20k/200k/2000K/10M Hz±(1.0%+10d)
  • Power Source : 9V 6F22 battery
  • Size (DxWxH) mm : 189x97.5x35mm
