Product Details

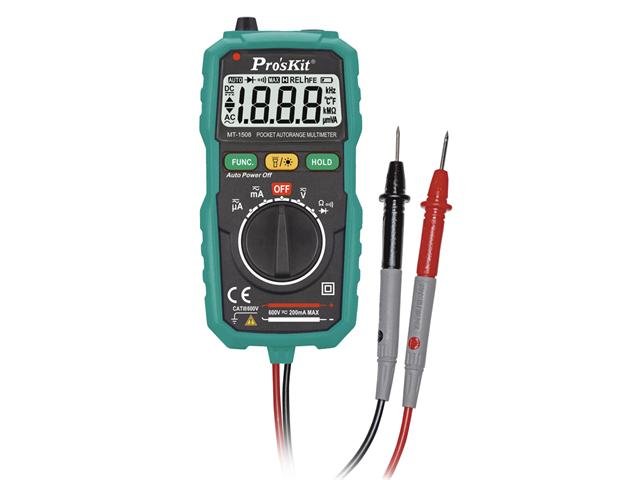

Pocket Auto Range Multimeter
Pocket Auto Range Multimeter
Features
- Comply with CE EN61010-1 CATIII 600V Safety rated
- Comes with a backlight, 3 1/2 digits 1999 counts, great to understand reading
- Auto range functions provide accurate, easy to use Display with backlight
- Non contact ACV detector
- Pocket size design for easy carrying
- Built-in LED flash light
- Extra function: Auto power off, low batter indication, Data hold, Over range indication
Specifications
- DCV : 200mV/2V/20V/200V± (0.5%+3d)600V±(0.8%+5d)
- ACV : 2V/20V/200V±(0.8%+3d) 600V±(1.0%+5d)
- DCA : 200µA/2000µA /20mA/200mA±(1.8%+5d)
- AVA : 200µA/2000µA /20mA/200mA±(2.0%+5d)
- Resistance : 200Ω/2kΩ/20kΩ/200kΩ/2MΩ±(1.0%+3d) 20MΩ±(1.2%+15d)
- Non contact ACV detector : Y
- Diode test : Y
- Continuity with beep : Y
- Certificate : RoHS, CE EN61010-1 CATIII 600V
- Battery : 2x1.5V AAA
- Weight : 0.33 lbs (not including battery)
- Dimension : 125mmx60mmx26mm 4.9x2.4x1"
Additional Information
| Device | Multimeter |
| Type | Pocket | Auto Range |
