Product Details

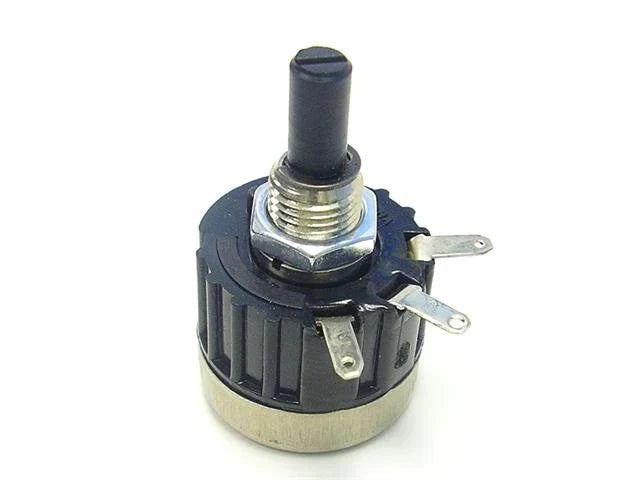

Potentiometer Wire Wound 3W 22K
Potentiometer Wire Wound 3W 22K
Downloads
Additional Information
| Device | Potentiometer |
| Type | Wire Wound | 3W | 22K |
| Size | 25mm dia |
| Power Rating | 3W |
| Tolerance | ±10% |
| Tolerance Code | K |
| Element Type | Wirewound |
| No. of Turns | 1 Turn 280° |
| Mounting Style | Panel Mount |
| Shaft Diameter | 6mm |
| Shaft Type | Glasfiber |
| Shaft Length | 12mm |
