Product Details
Planet Power Over Gigabit Ethernet Extender 10/100/1000Base-T, PoE PWR O/P:44-55VDC 25Watts, 1 PORT 802.3at POE+ 2-PORT 802.3af/at, (140X77X28mm) 258g
Power Over Gigabit Ethernet Extender
Overview

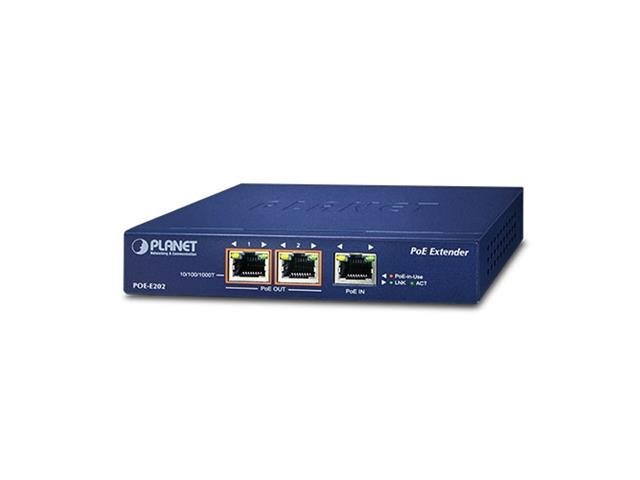

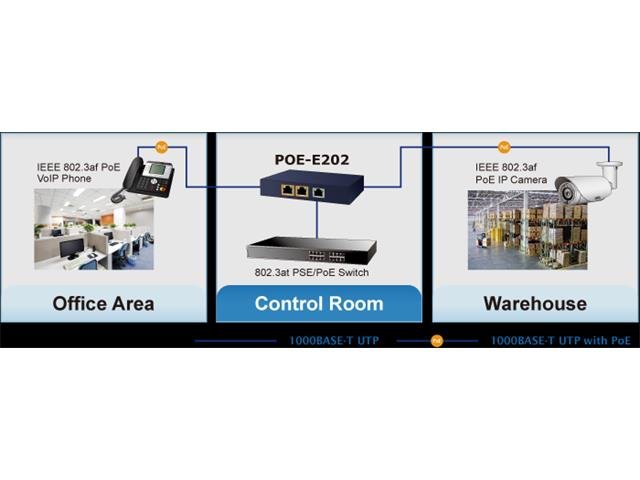

PLANET POE-E202 is a 1-port PoE+ to 2-port 802.3af/at Gigabit PoE Extender
designed especially for point to multipoint PoE application. The POE-E202 can
obtain a maximum of 30-watt PoE power from PoE+ input port and supplies a
maximum of 25-watt PoE power budget for two PoE output ports, extending both
the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over
the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to up to two 200m powered
devices at the same time.The POE-E202 provides a simple solution for adding PoE
ports without running more cabling and achieves more flexible network applications
without requiring an external power adapter.
Specifications
Physical Port
- 3-port 10/100/1000BASE-T Gigabit RJ45
- 1-port data + power input
- 2-port data + power output
Power over Ethernet
- 1-port data + power input
- Complies with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD
- Supports PoE input power up to 30.8 watts
- 2-port data + power output
- Complies with IEEE 802.3af/IEEE 802.3at Power over Ethernet end-span PSE
- Up to 2 IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 25 watts for each PoE port
- Auto detects powered device (PD)
- Extends the range of PoE to an additional 100 meters (328ft.)
- Forwards both Ethernet data and PoE power to remote device
Layer 2 Features
- Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Integrates address look-up engine, supporting 2K absolute MAC addresses
- 10K iumbo packet support
- IEEE 802.1Q VLAN transparency
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- Automatic address learning and address aging
- Supports CSMA/CD protocol
Case and Installation
- No external power cable installation required
- Made of metal, desktop size design
- Wall-mountable, Plug-and-Play installation
- 0 ~ 50 degrees C operating temperature
Downloads
Additional Information
| Device | Ethernet Extender |
| Type | Power Over Gigabit |
