Circular Connector Plastic IP67 Waterproof Bayonet Lock Female Panel Receptacle 4 Pole 5A/250VAC - 15,6x14,8 Panel Cutout (5/8") -40 - 105°

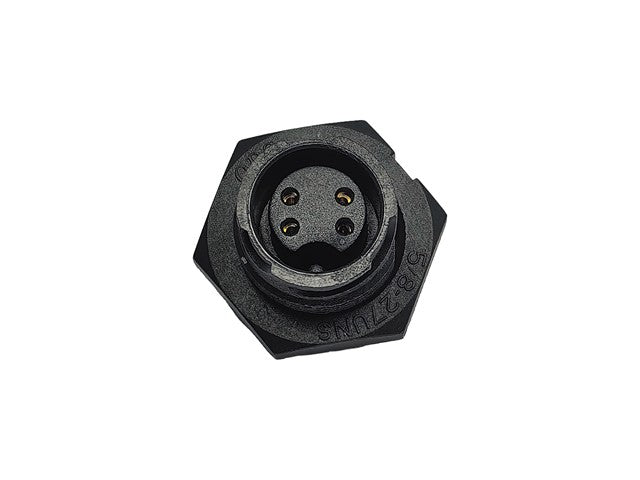

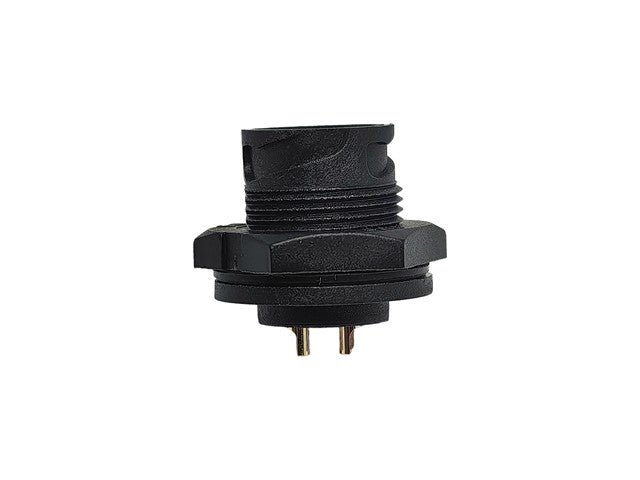

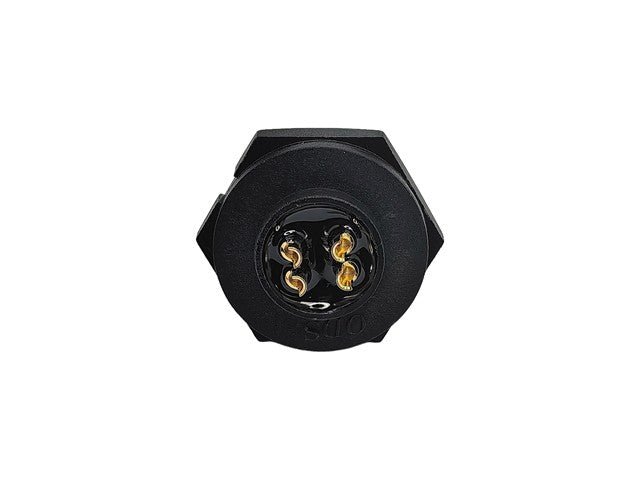

Plastic IP67 Waterproof Circular Connector
Specifications
| Product |
Circular |
| Category |
Standard (B) Size 5/8"-27UNS |
| Size |
5/8"-27UNS |
| Connector Type |
Receptacle Front Circular Seat |
| Connector Gender |
Male |
| Contact/ Pin/ Terminal |
Female |
| Number of positions |
4Pin |
| Current Rating (Amp) |
5A |
| Voltage Rating |
250V |
| Locking System/ Mating Style |
3-Point Bayonet Lock |
| Material- Lock Nut |
Plastic |
| Material- Connector Body |
Plastic |
| Cable Type |
Data |
| Shield Type |
Unshielded |
| Assemble Type/ Field Installable |
Solder |
| IP Rating |
IPX7 |
Additional Information
| Device |
Connector |
| Type |
Plastic | IP67 | Waterproof | Circular |
