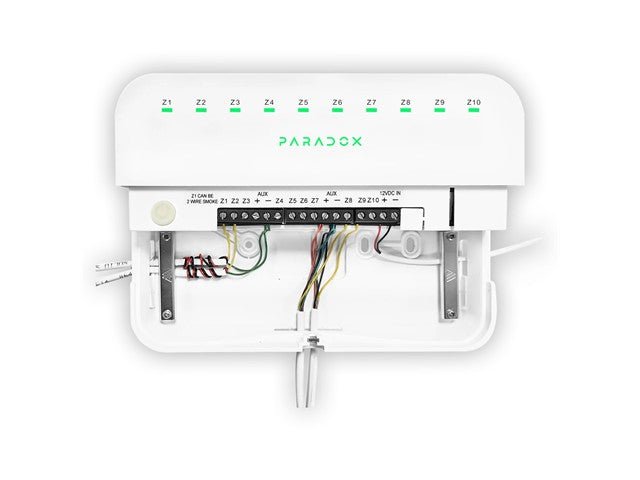

Paradox ZX10M Indoor 10 Zone Input Expander for M25, RF FREQ:868MHZ, I/P:12~14.0VDC/1A, Internal Battery:2x3.7V Li-Ion Batt 5000mAh, Auto Learn, AUX O/P, Temp Sensor, Support I/P with no EOL Resistor, a Single EOL Resistor or Dual EOL Resistors
Indoor 10 Zone Input Expander
Features
- Wireless 10 zone inputs expander
- Input 1 can be configured as a fire zone
- 12V power, rechargeable 2 lithium 5000 mAh backup batteries
- 12 hours battery backup @ 180 mA auxiliary output, auxiliary maximum 400 mA
- Temperature sensor
- Supports input with no EOL resistor, a single EOL resistor, or dual EOL resistors
- Certifications: CE, EN 50131-3, EN 50131-5-3, EN 50131-6, Grade 2, Class II, FCC 15.247
Specifications
| Power Input |
12-14.0VDC/1A |
| Wireless Type |
GFSK two-way with frequency and encryption hopping |
| RF Frequency |
868 (865.05 – 867.95) MHz or 914 (902.25 – 927.55) MHz; may vary by country |
| RF Power |
868 MHz: +14 dBm radiated, 914 MHz: +22 dBm in permitted countries |
| Number of Inputs |
10 |
| Input Connection Type |
Two wires, No EOL, 1EOL A (1 kilo ohm), 1EOL B (1kilo ohm), 2EOL (2 x 1 kilo ohm), Zone one can be set as two-wire smoke |
| Status Indicators in Application |
Zone open/close, tamper status, power supply, battery level, temperature, TX/RX values |
| Status Indication |
Logo: online, offline, battery or power operation, upgrade in process, tamper, zone LEDs – open/close |
| Battery |
2 x 3.7V Li-ion battery, 5000 mAh |
| Aux Output Supply |
12.5 – 13.8V, rated at 220 mA, (12 hours battery backup at 180 mA), auxiliary maximum 400 mA |
| Transmission Time |
Less than 20 ms |
| Supervision Time |
20 minutes, 10 minutes (Default), and 3 minutes |
| Installation Environment |
Indoor |
| Operating Temperature |
-20°C to 50°C (–4°F to 122°F) |
| Battery Charging |
0°C to 40°C (32°F to 104°F) |
| Humidity Range |
95% maximum |
| Firmware Upgrade |
Remotely over the air, via BlueEye |
| Auto Learn |
Yes |
| Colors |
White |
| Dimensions |
18W x 13H x 4.5D cm (7.09″ W x 5.12″ H x 1.79″ D) |
| Weight |
0.41 kg |
Downloads
Additional Information
| Device |
Expander |
| Type |
Indoor | 10 Zone | Input |
