Product Details

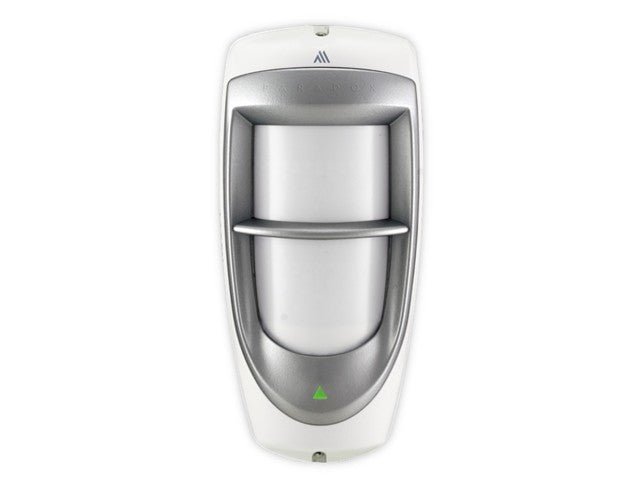

PARADOX PMD85M Outdoor Dual-Optic PIR Motion Detector 868MHz, Advanced Pet-Immunity, Coverage:90°~11m, Includes Swivel Bracket, Auto Learn, Operating Temp:-20°C~+40°C , BATTERY 3XAA Lithium, IPX4, (PA6730)
Outdoor Dual-Optic PIR Motion Detector
Features
- Hybrid wireless console
- Security, Video Verification, Access Control, programmable outputs
- 3 communication channels - Ethernet, Wi-Fi, LTE
- PoE, 10W power consumption
- 10 partitions, 128 users, 100 zones, 128 remotes
- GFSK wireless, 914 MHz or 868 MHz, 75 nodes per system
- Auto-lean wireless and Ethernet devices
- Temperature monitoring and control
- Safe direct reporting to CMS up to 4 channels without cloud dependency
- User-friendly, simple, mobile application
- Certifications: CE, EN 50131-3, EN 50131-6, EN 50136-1, EN 50136-2, EN 50131-5-3, FCC 15.247 Grade 2, Class II
Specifications
- Model: PMD85M
- Type: Wireless outdoor dual-optic PIR motion detector
- Pet Immunity: Up to 40 kg
- Coverage / Detection Angle: 90° × 11 m (11 m radius)
- Detection Speed: 0.2 m/s to 3.5 m/s
- Wireless Frequency: 868 MHz or 914 MHz (depending on region)
- RF Power: +14 dBm (868 MHz), +22 dBm (914 MHz where permitted)
- Transmission Time: Less than 20 ms
- Supervision Time: 3 min, 10 min (default), or 20 min
- Power / Battery: 3 × AA lithium batteries, up to 5 years battery life
- Operating Temperature: –20 °C to +40 °C
- Dimensions: 8.3 cm (W) × 17.5 cm (H) × 7.4 cm (D)
- Weight: 0.27 kg
- Certifications / Standards: CE, EN 50131-2-2, EN 50131-6, EN 50131-5-3, FCC 15.247
Downloads
Additional Information
| Device | Detector |
| Type | Outdoor | Dual-Optic | PIR | Motion |
