Product Details

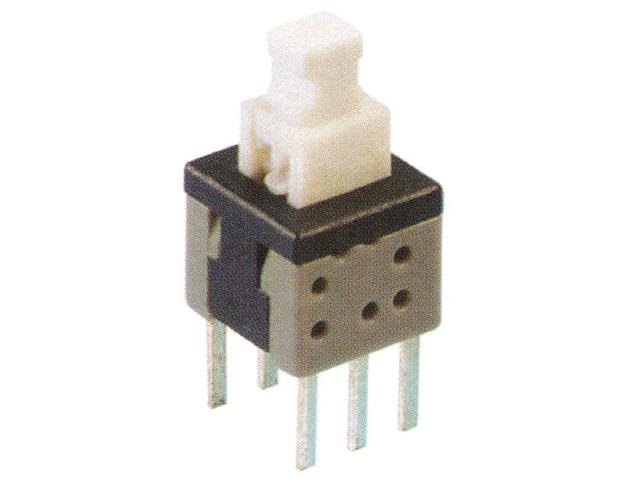

30VDC 1A 6Pin Push Button Switch • Latching • PCB
Push Button Switch
Specifications
- Insulation Resistance : >100mΩ 250VDC
- With Voltage : 250VAC 1 minute
- Contact Resistance : <50mΩ
- Soldering Temper. : 25°C max. 3sec
- Mechanical Life : 100,000 cycles
- Electrical Life 10,000 cycles
- Ambient Temper. Used : -20°C to 65°C
- Ambient Humidity Used <85% RH
- Operation Force : 160 ± 80g
Downloads
Additional Information
| Device | Switch |
| Type | Push Button |
| Transition Style | Latching |
| Termination | PCB |
| Voltage Rating | 30V |
| Voltage Type | DC |
| Current Rating | 1A |
| Mechanical Life | 100000 cycles |
| Temperature | -20~65°C |
