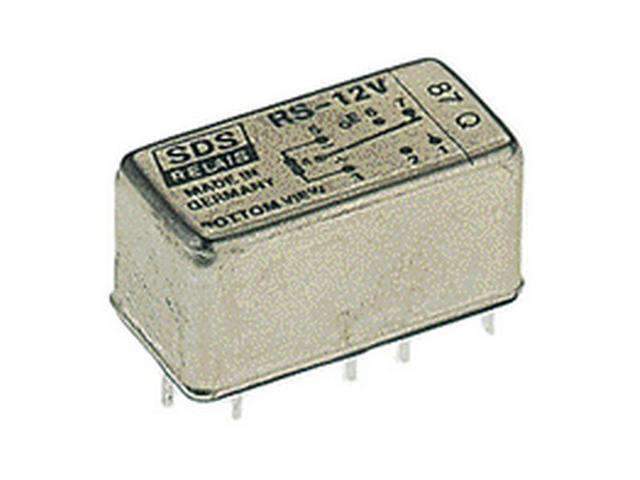

Mini Telecom Relay • Form 1C • VCoil= 6V DC • IMax Switching= 1A • RCoil= 220Ω • PCB
- Polarized
| Model | NRSD6V |
| Contact Form | Form 1C |
| Size Category | Mini |
| Size | 20x10x10mm |
| Termination | PCB |
| Coil Rated Voltage | 6V |
| AC/DC Voltage | DC |
| Max. Switching Current | 1A |
| Electrical Rating | 1A/20VDC |
| Coil Power | 200mW Power |
| Coil Resistance | 220Ω |
| Isolation Voltage | 1KV |
| Approvals | UL/CSA |
| Contact Material | AuCo |
| No. of Pins | 8 Pin(s) |
| No. of Poles | 1 Pole(s) |
