Passive Optical Network (PON) Optical Power Meter. Wavelength.Ont Uplink Signal Probe (1310NM). Wavelength.OLT/Video Downlink Signal Probe (1490/1550NM).

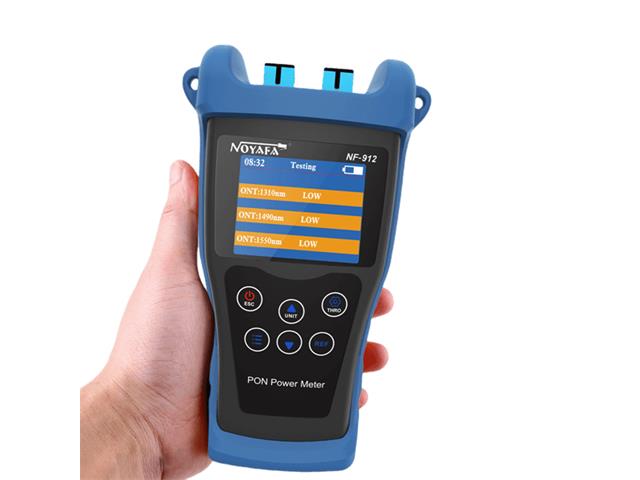

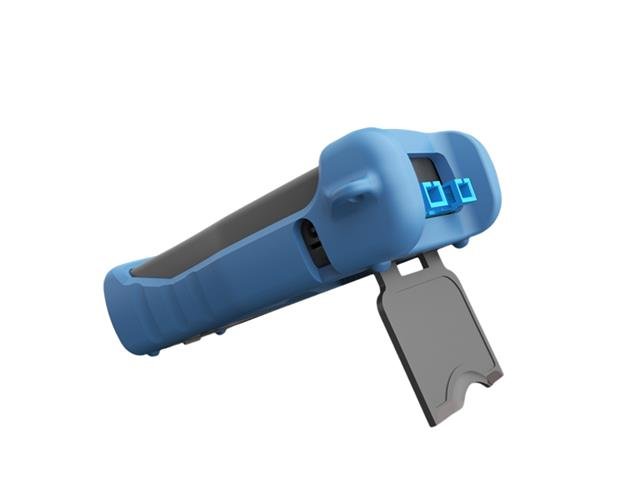

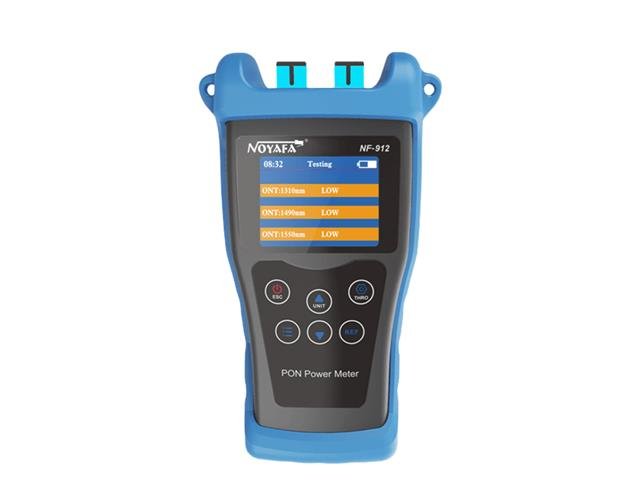

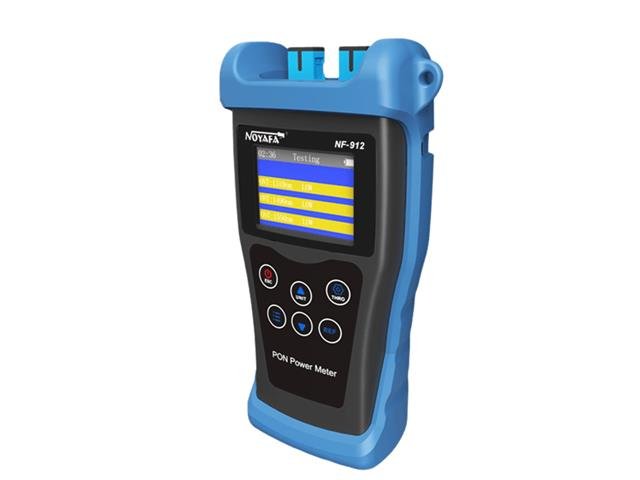

Passive Optical Network (PON) Optical Power Meter
Features
- Wavelength.ONT Uplink signal probe (1310nm).
- Wavelength.OLT/Video Downlink signal probe (1490/1550nm).
- Quickly Diagnose the Network Problems.
- Auto off Function, it can set for time and threshold.
- Data Storage.
- SC/FC general-purpose interface.
- Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
- 100% Affordable. Manufactured in China and a lot cheaper than competitor products with similar quality.
Specifications
| Type |
NF-912 |
| Calibration wavelength |
1310 Uplink test |
1490 Downlink Test |
1550 Downlink Test |
| Passband (nm) |
1260~1360 |
1480~1500 |
1535~1570 |
| Detection range (dBm) |
-35~+10 |
-50~+10 |
-50~+10 |
| lsolation 1310nm (dB) |
— |
>40 |
> 40 |
| lsolation 1490nm (dB) |
>40 |
— |
>40 |
| lsolation 1550nm (dB) |
>40 |
>40 |
— |
| Precision (dB) |
±0.5
|
| Linearity |
±2% |
| Fiber optic adapter |
Optical fiber SC interface |
| Detector type |
Yes |
| Battery type |
3.7V/1440mAH lithium battery |
| Battery life (H) |
>50 |
| Use temperature |
-10%~+50°C，<90%RH
|
| Storage temperature |
-20%~+60°C，<90%RH
|
| Product size (mm) |
182*105*50 |
Downloads
Additional Information
| Device |
Optical Power Meter |
| Type |
Passive Optical Network (PON) |
