Product Details

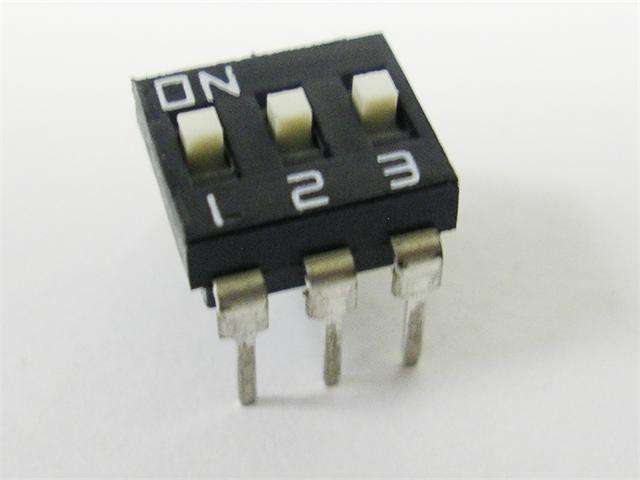

End-Stackable Type 3 way DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 1000gf max • PCB-Thru-Hole Splay Terminals
Overview
Features
Specification
| Transition Style | Latching |
| Actuator Style | Raised-Actuator |
| Actuating Force | 1000gf max |
| Termination | PCB-Thru-Hole Splay |
| Switch Circuit | 1A-SPST(NO) |
| Electrical Rating | 25mA-24VDC |
| Electrical Life | 2000 Operation Cycles |
| No.of Poles/Pins | 3Pos |
| Base Colour | Black |
| Actuator Colour | White |
| Size | Pitch : 2,54mm |
| Mechanical Life | 2000 Operations |
| Stroke | 1.0mm |
| Temperature | -20°C ~ +85°C |
