Product Details

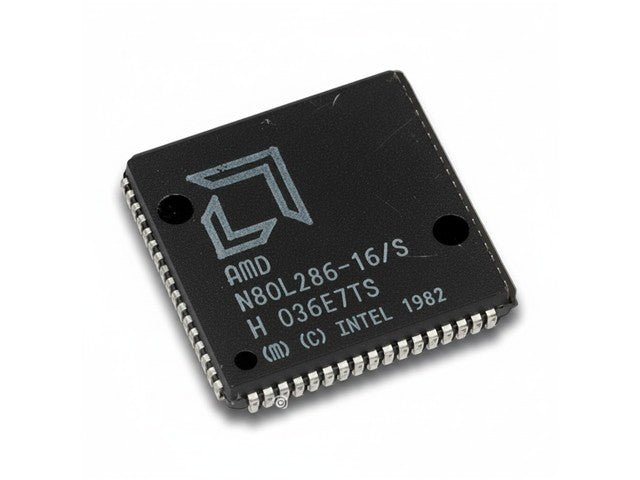

16-BIT 16MHz RISC Microprocessor PLCC66
Specifications
- Category: Microprocessors (MPU)
- Manufacturer: AMD (Advanced Micro Devices)
- Family: Am286
- Part Number: N80L286-16
- Architecture: Intel-compatible 80286
- Word Size: 16-bit
- Core Count: 1
- Clock Frequency: 16 MHz
- Bus Speed: 16 MHz
- Bus Rate: 16 MT/s
- Clock Multiplier: 1×
- Technology: nMOS Low-Power
- Supply Voltage: 5 V ±5%
- Power Dissipation: 2.89 W
- Maximum Addressable Memory: 16 MB
- Address Bus Width: 24-bit
- Data Bus Width: 16-bit
- Operating Temperature (Case): 0°C to +85°C
- Storage Temperature: -65°C to +150°C
- Package Type: 68-pin PLCC (Plastic Leadless Chip Carrier)
- Introduction Year: 1989
- Market Segment: Embedded / Industrial Applications
- Multiprocessing Support: Uniprocessor (1-way SMP)
- Cache Memory: None (no on-chip cache)
- Integrated FPU: No
- Optional Coprocessor Support: AMD Am287 math coprocessor
- Instruction Set: x86 (80286 compatible)
- Operating Modes:
- Real Mode
- Protected Mode
- Software Compatibility:
- Intel 8086/8088 software compatible
- IBM PC/AT compatible systems supported
- Maximum Virtual Memory: Up to 1 GB in protected mode architecture
- Transistor Count (Am286 family): Approximately 134,000
Feature
- Low-power version of the AMD Am286 processor
- Fully compatible with Intel 80286 instruction set
- Hardware memory protection and management
- Protected-mode operation for multitasking operating systems
- Support for external Am287 floating-point coprocessor
- Designed for embedded, industrial, and control applications
- Lower power consumption than standard Am286 variants
