Product Details

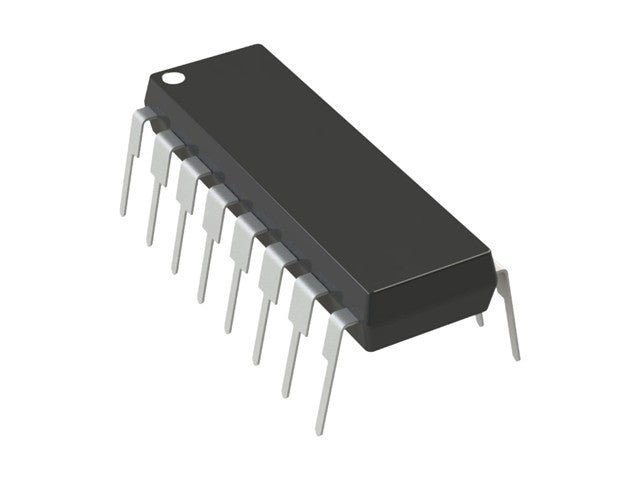

JFET 8channel Multiplexers 16PDIP
Specifications
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 1
- On-State Resistance (Max): 300Ohm
- Channel-to-Channel Matching (ΔRon): 21Ohm
- Switch Time (Ton, Toff) (Max): 2µs, 400ns
- Channel Capacitance (CS(off), CD(off)): 2.5pF, 7pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -70dB @ 500kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Package / Case: 16-DIP (0.300", 7.62mm)
- Supplier Device Package: 16-PDIP
Downloads
Additional Information
| Device | IC |
