Product Details

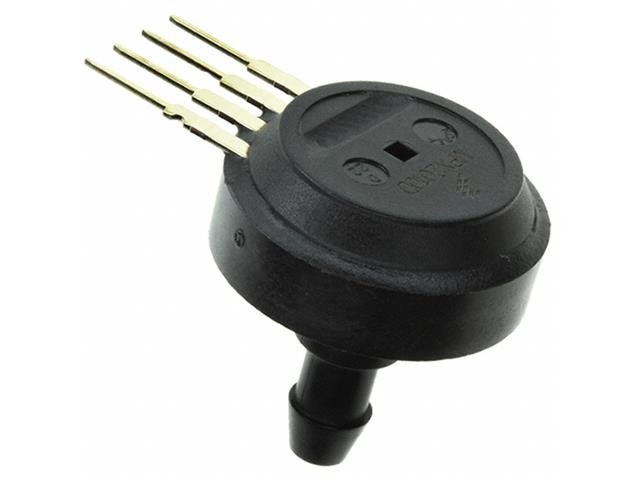

Pressure Sensor 10kPa 1.45psi 344E-01
Pressure Sensor 10kPa
Specifications
|
Applications
|
Board Mount
|
|
Pressure Type
|
Vented Gauge
|
|
Operating Pressure
|
1.45PSI (10kPa)
|
|
Output Type
|
Wheatstone Bridge
|
|
Output
|
0 mV ~ 25 mV (10V)
|
|
Accuracy
|
±1%
|
|
Voltage - Supply
|
10V ~ 16V
|
|
Port Size
|
Male - 0.19" (4.93mm) Tube
|
|
Port Style
|
Barbed
|
|
Features
|
Temperature Compensated
|
|
Termination Style
|
PC Pin
|
|
Maximum Pressure
|
10.88PSI (75kPa)
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Through Hole
|
|

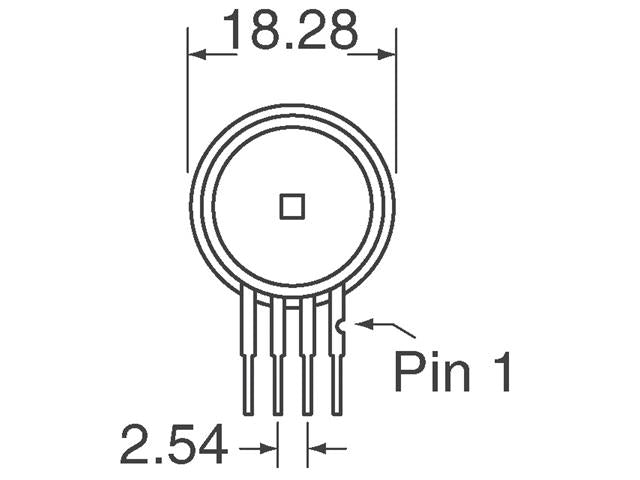

Package / Case
|
4-SIP Module
|
Downloads
Additional Information
| Device | Sensor |
| Type | Pressure | 10kPa |
