Product Details

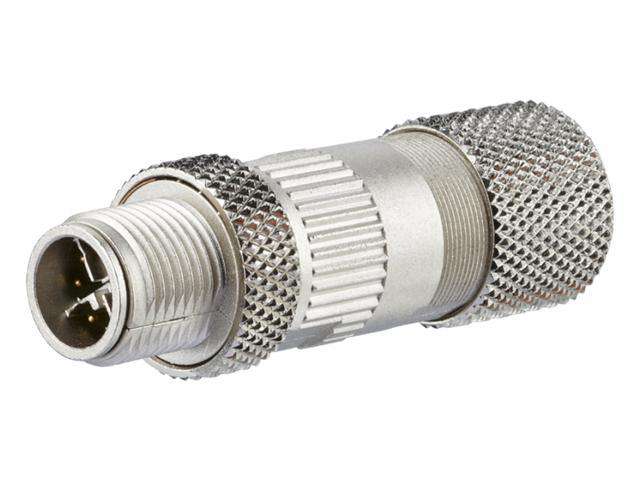

Circular Connector M12 X COD Cable Male 8 Pole IDT Connection 9mm Cable Entry Shieldable
Overview
Features
Â
- M12 Cat.6A X-coded plug based on IEC PAS 61076-2-109 and suitable for field assembly
- Suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
- For a 8-wire M12 plug for AWG 22
- Connection of AWG 26/1 - 22/1; AWG 26/7 - 22/7 possible
- Solid copper wire diameter from 0.4 to 0.64 mm
- Stranded copper wire diameter from 0.48 to 0.76 mm
- Core diameter up to 1.6 mm
- Cable jacket from 5.0 to 9.7 mm
- Consists of only 2 parts
- Easy assembly - connection without special tools
- Zinc die-cast housing for industrial use
