Product Details

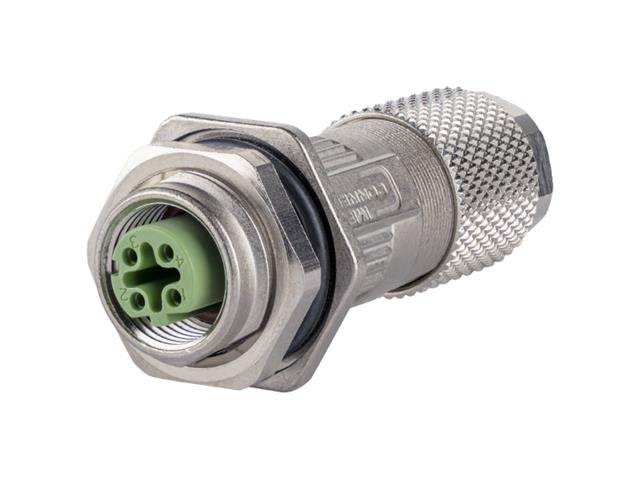

Circular Connector M12 D COD Shielded Cable Female with JAM Nut for Panel Mounting. 4 Pole IDT Connection 5 - 9,7mm Cable Entry
M12 D COD Shielded Cable Circular Connector
Specifications
|
Fastening Type
|
Threaded
|
|
Orientation
|
D
|
|
Primary Material
|
Metal
|
|
Shell Material
|
Zinc Die Cast
|
|
Shell Finish
|
Nickel
|
|
Contact Finish - Mating
|
Nickel-Gold
|
|
Color
|
Silver
|
|
Ingress Protection
|
IP67 - Dust Tight, Waterproof
|
|
Material Flammability Rating
|
UL94 V-0
|
|
Features
|
Backshell
|
|
Shielding
|
Unshielded
|
|
Current Rating (Amps)
|
4A
|
|
Voltage Rating
|
48VAC, 60VDC
|
|
Cable Opening
|
0.197" ~ 0.382" (5.00mm ~ 9.70mm)
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Backshell Material, Plating
|
Zinc Die Cast, Nickel
|
|
Contact Material
|
Brass
|
|
Insert Material
|
Polyamide (PA), Nylon
|
Downloads
Additional Information
| Device | Connector |
| Type | M12 | D COD | Shielded Cable | Circular |
| Mates With | MNF881A115 and all standard M12 'D' Code male Connectors |
