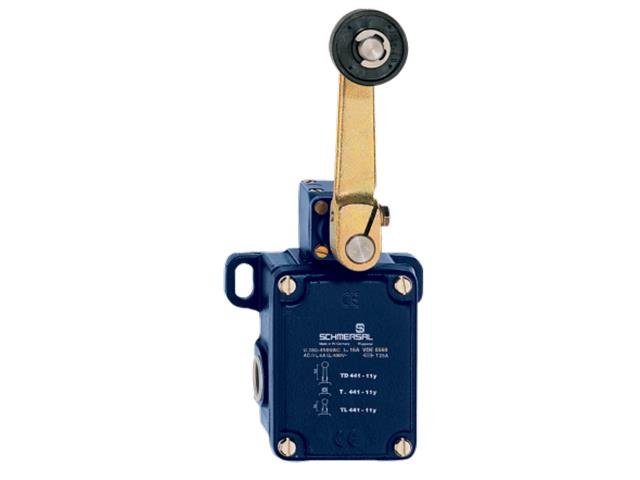

Limit Switch HD Metal Housing. - Ext. roller lever 2 Pole -1n/o + 1n/c 16A/250VAC max. IP65
Overview
Features
- 2 Contacts
- Metal enclosure
- Protection class IP65
- 2 cable entries M 20 x 1.5
- Lever can be transposed by 180°
- 106 mm x 99 mm x 63 mm (basic component)
- Continuous adjustment of lever position 360°
- Actuator head can be repositioned in steps 4 x 90°
- In temperature-resistant version, the roller can bemounted in two different positions on the shaft
Specification
- Product name : 441 roller lever D
- Standards : EN 60947-5-1 : mechanical
- Slide form : Castor : Grey cast iron, galvanised
- Enclosure coating material : painted : Silver
- Roller material : Plastic
- Gross weight : 1650.000 g
General data - Features
- Number of openers : 1
- Number of shutters : 1
Mechanical data
- Actuating element : Roller lever
- Mechanical life, minimum : 5,000,000 Operations
- Actuating angle, from left of switch axis : 30 °
- Actuating angle, from right of switch axis : 30 °
- Contact opening : 2 x 2.5 mm
- Actuating speed, minimum : 1 mm/min
- Actuating speed, maximum : 3 m/s
- Note (Actuating speed) : Actuating speed with vertical actuating angle to switch axis
Mechanical data - Connection technique
- Terminal Connector : Screw connection
- Cable section, minimum : 1.5 mm²
- Cable section, maximum : 2.5 mm²
- Note (Cable section) : All indications about the cable section are including the conductor ferrules.
- Wire cross-section : 13 AWG
Mechanical data - Dimensions
- Height of sensor : 237 mm
- Length of sensor : 63 mm
- Width of sensor : 106 mm
- Width of Castor : 9 mm
- Diameter of Castor : 36 mm
Ambient conditions
- Protection class : IP 65 to IEC/EN 60529
- Ambient temperature, minimum : -30 °C
- Ambient temperature, maximum : +90 °C
Ambient conditions - Insulation value
- Rated impulse withstand voltage : 4 kV
Electrical data
- Thermal test current : 16 A
- Utilisation category AC-15 : 250 VAC
- Utilisation category AC-15 : 4 A
- Switching element : NO contact, NC contact
- Note (Switching element) : galvanically separated contact bridges
- Switching principle : Snap switch element
- Bounce duration, maximum : 5 ms
- Switchover time, maximum : 35 ms
