Product Details

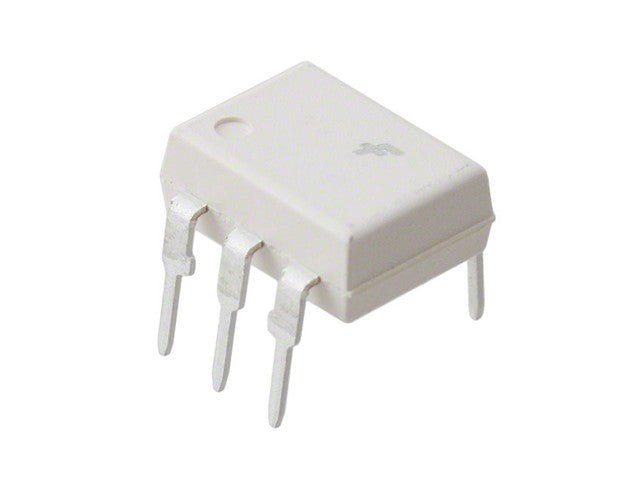

OptO Isolator Transistor with Base Output 5300Vrms 1 Channel 6-DIP
Opto Isolator Transistor
Specifications
|
Number of Channels
|
1
|
|
Voltage - Isolation
|
5300Vrms
|
|
Current Transfer Ratio (Min)
|
6% @ 10mA
|
|
Input Type
|
DC
|
|
Output Type
|
Transistor with Base
|
|
Voltage - Output (Max)
|
30V
|
|
Current - Output / Channel
|
50mA
|
|
Vce Saturation (Max)
|
400mV
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
6-DIP (0.300", 7.62mm)
|
|
Supplier Device Package
|
6-DIP
|
Additional Information
| Device | Transistor |
