Product Details

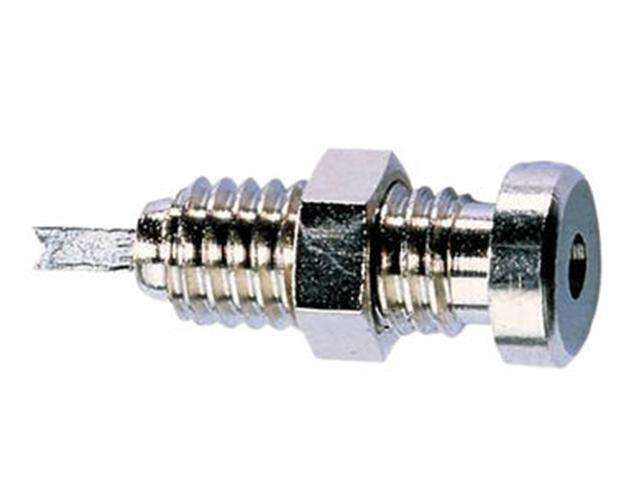

Banana Test Socket 2mm Panel Mount Nickel Plated 6A 30VAC/60VDC (930312000)
Overview
Features
Specification
Technical Data
- Measurement Category to IEC 61010 : CAT I
- Type of Contact : Spring-Loaded Socket 2 mm
- Type of Termination : Solder
- Rated Voltage : 30 VAC / 60 VDC
Rated Current
- Please consider derating curve! : 6A
- Contact Resistance : 6 mOhm
Material
- Contact Material : Contact Spring: Copper - Beryllium
- Contact Surface Material : Tin
