Product Details
Measure ACV and DCV up to 600V, ACA and DCA up to 200mA, Resistance to 20MΩ,
Digital Multimeter and Cable Tracer
Overview

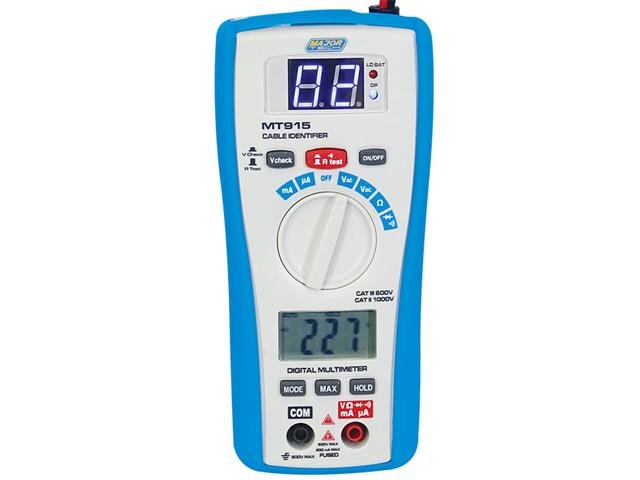

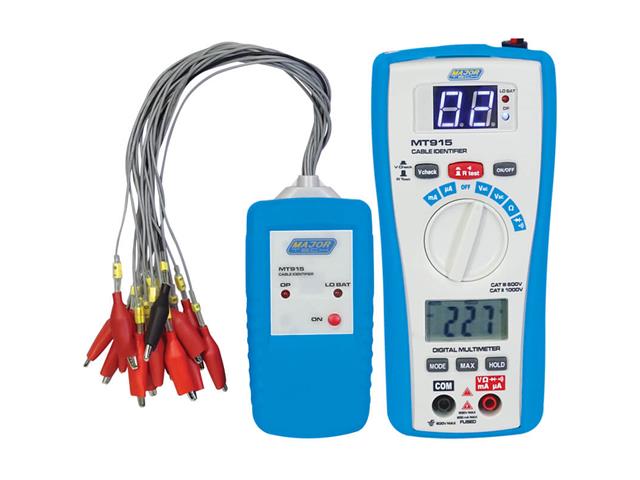

The MT915 is a 2-in-1 Cable Finder & Multimeter with an amazing tracing system which will save hours instead of Belling-Out any circuit. The MT915 consists of a transmitter & receiver device which enables one person to instantly match up ends of individual cores at either end of a multi-core cable. With the remote kit the meter can test cables installed over long distances either on wall plates or patch panels. The DMM function makes it easy to measure AC Volts, DC Volts, AC and DC Current, Resistance, Continuity and Diode Test.
Features
- CAT III 600V and CAT II 1000V
- AC and DC Voltage 600V
- AC and DC Current 200mA
- Resistance 20Mê¥
- Diode Check and Continuity
- Identifies up to 16 cables
- Cuts out “Bell-Out†time

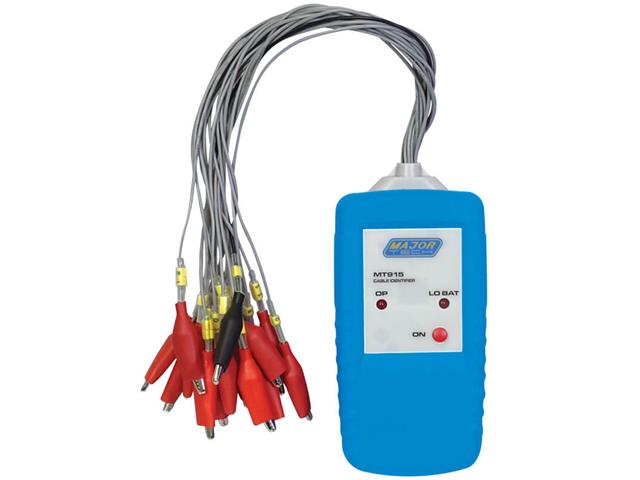

- Transmitter and Receiver included
- Displays the cable number on the large LED display
Specifications
| Function | Range | Resolution | Accuracy |
| DC Voltage | 0.001mV – 600V | 0.1mV | ±(0.5% + 3 Digits) |
| AC Voltage | 1V – 600V | 1mV | ±(1.0% + 5 Digits) |
| DC Current | 200.0μA – 200.0mA | 0.1μA | ±(1.5% + 3 Digits) |
| AC Current | 200.0μA – 200.0mA | 0.1μA | ±(1.8% + 8 Digits) |
| Resistance | 200.0Ω – 20MΩ | 0.1Ω | ±(1.2% + 3 Digits) |
| Overrange Indication | Yes | ||
| Input Impedance | >7.5MΩ VDC & >7.5MΩ VAC | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Cable Finder | 16 channels; 30KΩ 1.8mA | ||
| Ac Bandwidth | 50Hz – 60Hz | ||
| Digital Display | 2000 | ||
| Min Max | Yes | ||
| Back Light | Yes | ||
| Enclosure | Rubber Holster | ||
| Batteries | 2 x AAA and 9V | ||
| Weight | 315g | ||
| Dimensions |
Multimeter: 162 x 74 x 43mm Transmitter: 130 x 69 x 32mm |
||
| Safety Specs | IEC61010-1 CAT III 600V | ||
Downloads
Additional Information
| Device | Multimeter | Cable Tracer |
| Type | Digital |
