Product Details
DMM 6 in 1 with Enviromental Meter Capacitance/Lux Meter 40 000 Lux

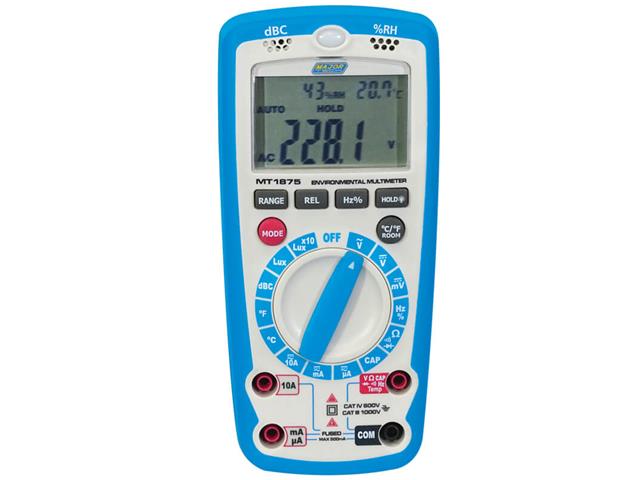

6-In-1 Environmental Multimeter
Overview
The MT1875 is a 6-in-1 Digital Multimeter with Environmental Measurement. It has been designed to combine the functions of Sound Level, Light Meter, Humidity, Temperature and non contact voltage detector all in one meter. Sound level can be used in factories, schools, offices and homes, checking acoustics of studios, auditoriums and hi-fi installations. Light meter is fully cosine corrected for the angular incidence of light. Temperature is measured via a K-Type thermocouple. The DMM function includes AC volt, DC volt, AC current, DC current, Resistance, Capacitance, Frequency and Duty Cycle.
Features
- 6-in-1 multifunction meter with environment measurement
- Fully functional DMM with ACV, DCV, ACA, DCA, Ohms, frequency,
- Capacitance and Duty Cycle
- Continuity Buzzer and Diode Test
- Non-contact voltage detector
- LUX Meter measurement to 40,000 lux
- Indoor: Humidity range from 25% to 95% RH (0.1%)
- Indoor: Temperature from – 20°C to 50°C
- Sound level measurement to 110dB
- 4000 Count digital display with backlight
- Data hold and relative function
- CAT III 300V and CAT II 600V
Accessories:
- Type K Temperature Probe
- 9V Battery
- MT810 Test Leads
- Instruction Manual
Optional Accessories:
Specifications
| DC Voltage |
600V |
|---|---|
| DC Voltage accuracy |
±(1.0% +4) |
| DC Voltage resolution |
0.1mV |
| AC Voltage |
600V |
| AC voltage accuracy |
±(1.0% +4) |
| AC Voltage resolution |
0.1mV |
| DC Current |
10A |
| DC Current accuracy |
±(1.0%+2) |
| DC Current resolution |
0.1µA |
| AC Current |
10A |
| AC Current accuracy |
±(2.0% +5) |
| AC current resolution |
0.1µA |
| Duty Cycle accuracy |
±(1.2% +2) |
| Duty Cycle resolution |
0.001 |
| Resistance |
40MΩ |
| Resistance accuracy |
±(1.5% +2) |
| Resistance resolution |
0.1Ω |
| Frequency |
10MHz |
| Frequency accuracy |
±(1.2% +3) |
| Frequency resolution |
0.001Hz |
| dB Measurements |
35-110dB |
| Capacitance |
100.0µF |
| Capacitance accuracy |
±(3.0% +5) |
| Capacitance resolution |
10pF |
| Temperature |
-20 to 1300°C |
| Temperature accuracy |
±(3.0%+5) |
| Temperature resolution |
1°C |
| Humidity |
33%-99% |
| Humidity accuracy |
±( 3.0%+5) |
| Humidity resolution |
0.01 |
| Lux |
4000-40000Lux |
| Lux accuracy |
±( 5.0%+10) |
| Lux resolution |
1Lux |
| Continuity |
Yes |
| Diode Test |
Yes |
| AC Bandwidth |
50Hz to 400Hz |
| Digital Display |
4000 |
| Non-Contact Voltage (NCV) |
Yes |
| Over-range indication |
Yes |
| Input Impedance |
˃10MΩ VDC & ˃9MΩ VAC |
| Data Hold |
Yes |
| Back Light |
Yes |
| Low battery indication |
Yes |
| Power Supply |
9V Battery |
| Enclosure |
Double moulded waterproof IP67 |
| Dimensions |
187 x 81 x 50mm |
| Weight |
355g |
Downloads
Additional Information
| Device | Multimeter |
| Type | 6-In-1 | Environmental |
