Product Details
DC MilliAmp Digital Process Clamp Meter with 6mm Jaw size and Analogue output Function
Digital Process Clamp Meter
Overview

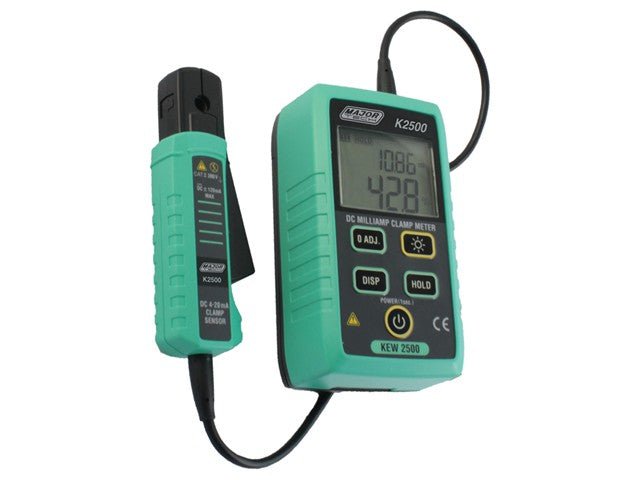

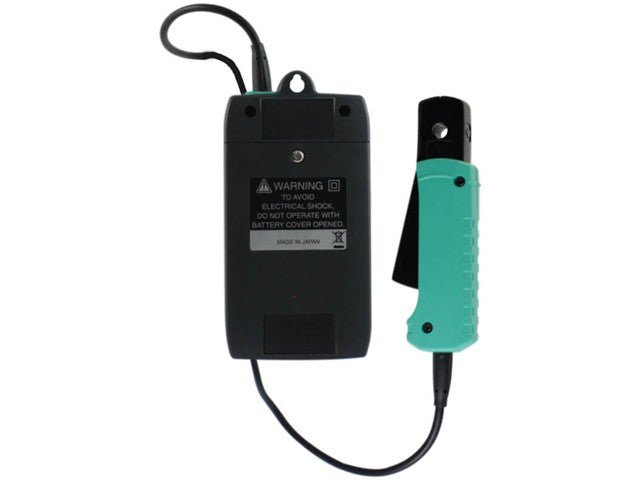

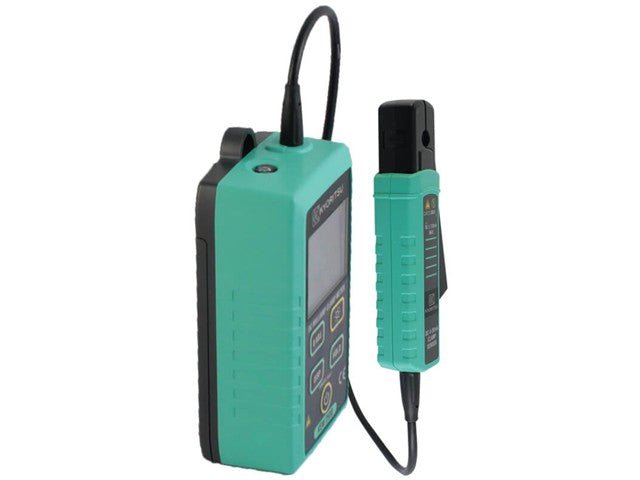

The K2500 Process Current clamp measures 4-20mA process current used for instrumentation with its compact Ø6mm jaw without breaking the loop. It is easy to handle and is equipped with a LED torch and backlit display for use in dark environments. The K2500 also comes with an analogue output which allows the user to connect to a multimeter or recorder for logging. The large display accurately displays % value and mA measured.
Features
- Measures DC current in milliamps up to 200mA
- 0.1mA resolution for accurate readings
- One-handed operation with a compact design
- Measures both DC voltage and resistance
- Data hold function for easy readings
- Auto power off to conserve battery life
- Includes a carrying case for easy transport and storage
Specifications
| Function | Range | Resolution | Accuracy |
| DC Current | 20mA - 120mA | 0.01mA | ± (0.2% + 5 Digits) |
| 4-20mA% | Yes | ||
| Jaw size | Ø6mm | ||
| Digital Display | Dual display mA/% | ||
| Data logging | Output terminal | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double moulded case | ||
| Low battery indication | Yes | ||
| Power source | 4 x LR6 | ||
| Weight | 290g | ||
| Dimensions | 111 x 61 x 40mm | ||
| Safety Specs | IEC61010-1 CatII 300V | ||
Downloads
Additional Information
| Device | Clamp Meter |
| Type | Digital |
