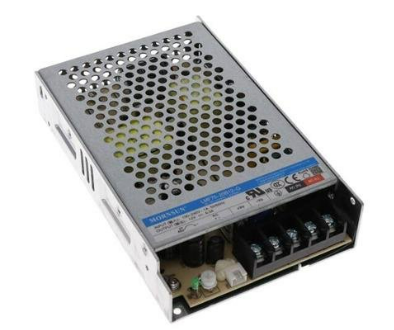

Metal Case Switch Mode Power Supply with Active PFC. Input: 85 ~ 264VAC/120 - 370VDC. Output 12VDC @ 6,3A. 4KVAC Isolation.
METAL CASE SWITCH MODE POWER SUPPLY
OVERVIEW
LMF75-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, built-in active PFC function, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC62368, UL62368, EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
FEATURE
Universal 85 - 264V AC or 120 - 370VDC Input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -25℃ to +70℃
Built-in active PFC function
High I/O isolation test voltage up to 4000VAC
High efficiency, high reliability
Output short circuit, over-current, over-voltage, over-temperature protection (Built-in constant current limiting circuit)
Remote ON-OFF control
Safety according to IEC/EN/UL62368, EN60335, EN61558, GB4943
Over-voltage class Ⅲ (designed to meet EN61558)
Withstand 300VAC surge input for 5s
Emissions meets CISPR32/EN55032 CLASS B without extra components
