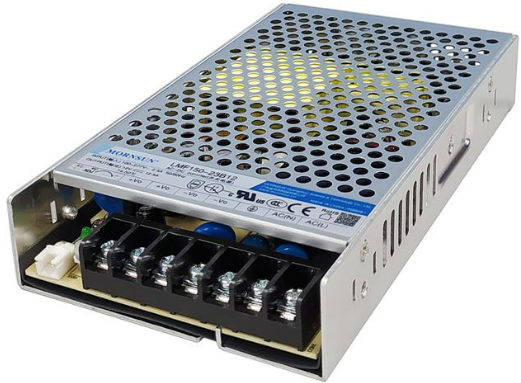

LMF150-23B12

METAL CASE SWITCH MODE POWER SUPPLY

OVERVIEW

LMF150-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, built-in active PFC function, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, UL/EN/IEC62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

FEATURE

• Universal 85 - 305V AC or 120 - 430VDC Input voltage
• Accepts AC or DC input (dual-use of same terminal)
• Operating temperature range: -30℃ to +70℃
• Built-in active PFC function
• High I/O isolation test voltage up to 4000VAC
• Output short circuit, over-current (Built-in constant
  current limiting circuit), over-voltage,
  over-temperature protection
• Remote ON-OFF control
• UL/EN/IEC62368, GB4943 safety approved
• Over-voltage class Ⅲ (designed to meet EN61558)
• Operating altitude up to 5000m
