LMF100-23B12

LMF100-23B12

Regular price
Dhs. 158.44
Regular price
Sale price
Dhs. 158.44
Unit price
per
Availability
Sold out

Metal Case Switch Mode Power Supply with Active PFC. Input: 85 ~ 305VAC/120 - 430VDC. Output 12VDC @ 8,5A. 4KVAC Isolation. (RSP-100-12)

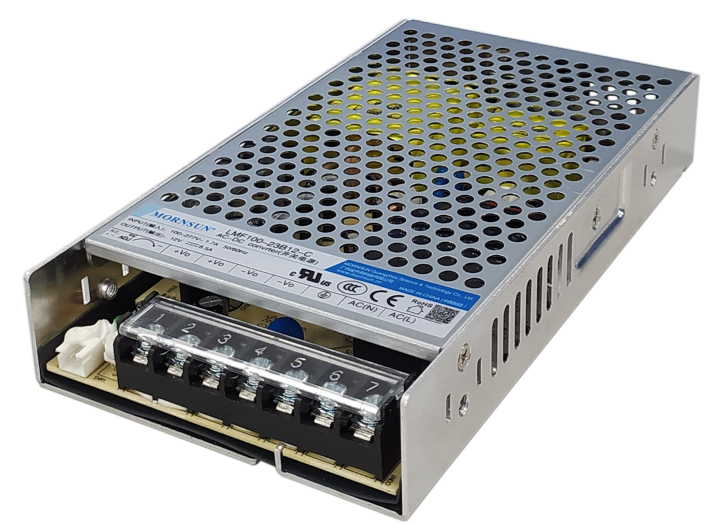

METAL CASE SWITCH MODE POWER SUPPLY

OVERVIEW
LMF100-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, built-in active PFC function, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
FEATURE
  • Universal 85 - 305V AC or 120 - 430VDCInput voltage
  • Accepts AC or DC input (dual-use of sameterminal)
  • Operating temperature range: -30℃to+70℃
  • Built-in active PFC function
  • High I/O isolation test voltage up to 4000VAC
  • Up to 87% efficiency
  • Output short circuit, over-current, over-voltage, over-temperature protection(Built-inconstant current limiting circuit)
  • Remote ON-OFF control
  • Safety according to IEC/EN60335, IEC/EN61558
  • Emissions meets CISPR32/EN55032 CLASS B without extra components
  • IEC/EN/UL62368, GB4943 safety approval
ADDITIONAL INFORMATION
Device Power Supply
Type Metal Case | Switch Mode
Input Voltage 85 ~ 305VAC/120 - 430VDC
Output 12VDC
Output Current 8,5A
Size 179.00 x 99.00 x 30.00mm

Datasheet Download
