Product Details

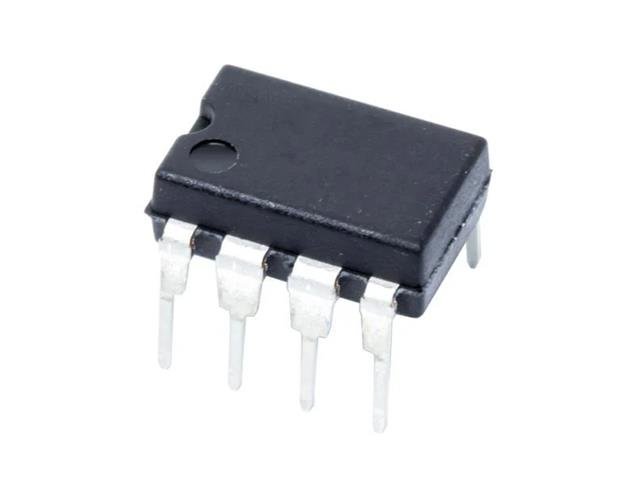

OP AMP High Slew Rate 8PD
Specifications
- High slew rate: 50 V/µs
- Unity-gain bandwidth: 15 MHz
- Low input offset voltage: ±0.5 mV
- Low input bias current: ±25 nA
- Wide supply voltage range: ±3V to ±20V
- High open-loop gain: 100 dB (minimum)
- Low noise density: 7 nV/√Hz at 1 kHz
- Package Type: DIP-8
- Supply Voltage Range: ±3V to ±20V
- Input Offset Voltage Drift: 0.5 µV/°C
- Input Resistance: 20 MΩ
- Output Short-Circuit Protection
- Operating Temperature Range: 0°C to +70°C
- Dimensions: 9.81 mm x 6.35 mm x 3.56 mm
- Weight: 0.35 g
Additional Information
| Device | IC |
