Product Details

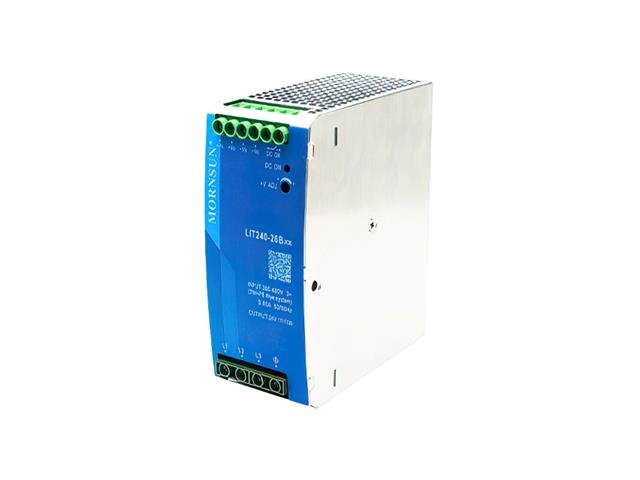

DIN Rail Metal Case Three Phase Power supply input 320 ~ 600VAC/450- 850VDC. Output 24VDC @ 10A
DIN Rail Metal Case Three Phase Power supply
Specifications
- Universal 320-600VAC or 450-850VDC input voltage, three-phase input (two or three phase are available)
- Operating ambient temperature range: -30℃ to +70℃ (60℃ full load)
- High I/O isolation voltage up to 4000VAC
- Low ripple & noise, high efficiency, 5000m altitude
- DC OK function
- 130% peak load for 3 seconds
- Output short circuit, over-current, over-voltage, over-temperature protection
- OVC III (designed to meet EN62477/2000m)
- Safety according to UL/IEC62368, EN62477, EN61558
Downloads
Additional Information
| Device | Power supply |
| Type | DIN Rail | Metal Case | Three Phase |
