Product Details

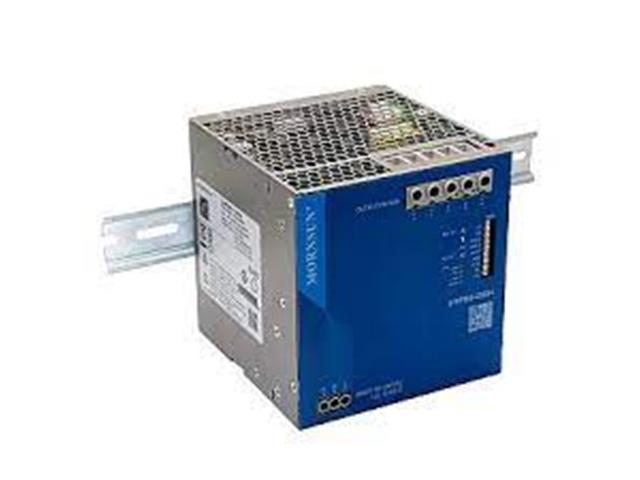

DIN Rail Metal Case Hi End/Hi Reliability Switch Mode Power Supply with Active PFC. Input: 85 ~ 277VAC/120 - 390VDC. Output 48VDC @ 20A IECEx/Atex Certified
Reliability Switch Mode Power Supply
Feature
- Universal 85 - 277VAC or 120 - 390VDC Input voltage
- Operating ambient temperature range: -40℃ to +85℃, full load at 60℃
- High efficiency, high reliability
- Continuous static power margin of up to 112% (PN)
- Provides 5s up to 150% (PN) dynamic power
- Support 5+1 parallel redundancy, current sharing
- Active PFC, PF＞0.97
- Support DC OK, AC OK, remote control function
- Support ModBus communication protocol
- Double-sided conformal coating, salt-spray proof, explosion-proof
- Operating altitude up to 5000m
- 5 years warranty
- Output short circuit, over-current, over-voltage, over -temperature protection
- Pollution degree 2
- OVC II
- OVC III (design refer to EN62477, 2000m)
- Meets ANSI/ISA 71.04-2013 G3 corrosion test
- Safety according to IEC/UL62368, GB4943, IEC/EN/UL61010, EN61558, EN62477, IEC60079, GB3836, NB/T31017
Additional Information
| Device | Power Supply |
| Type | Reliability | Switch Mode |
