DIN Rail Metal Case Switch Mode Power Supply with Active PFC. Input: 85 ~ 264VAC/120 - 370VDC. Output 24VDC @ 10A Hi Reliability (SDR-240-24)
DIN RAIL METAL CASE SWITCH MODE POWER SUPPLY
OVERVIEW

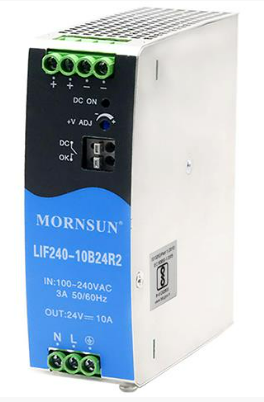

LIF240-10BxxR2 is Mornsun AC-DC converter series featuring a cost-effective, energy efficient green power supply solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise for industrial control equipment, machinery, and other industrial equipment in a variety of harsh environments. These light weight AC-DC converters have an extremely compact design and the standard rail installation for space saving. With good EMC performance, compliant with international IEC/EN/UL/BS EN 62368, UL61010 standards for EMCand safety.
FEATURE
Universal 85 - 264VAC or 120 - 370VDCInput voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -40℃to+70℃
High efficiency, high reliability
DC OK function
Built-in active PFC function
150% peak load output for 3 seconds
LED indicator for power on
Output short circuit, over-current, over-voltage, over-temperature protection
Safety according to IEC/UL/BS EN 62368 Operating altitude up to 5000m
