LIF240-10B12R2

LIF240-10B12R2

Regular price
Dhs. 320.33
Regular price
Sale price
Dhs. 320.33
Unit price
per
Availability
Sold out

DIN Rail Metal Case Switch Mode Power Supply w/Active PFC. Input: 85 ~ 264VAC/120 - 370VDC. Output 12VDC @ 16A Hi Reliability (SDR-240-12)

DIN RAIL METAL CASE SWITCH MODE POWER SUPPLY
OVERVIEW

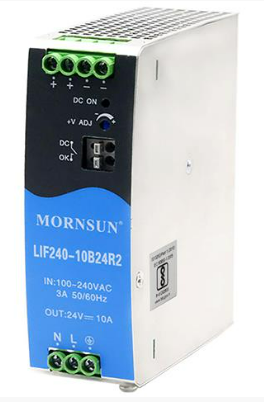

LIF240-10BxxR2 is Mornsun AC-DC converter series featuring a cost-effective, energy efficient green power supply solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise for industrial control equipment, machinery, and other industrial equipment in a variety of harsh environments. These light weight AC-DC converters have an extremely compact design and the standard rail installation for space saving. With good EMC performance, compliant with international IEC/EN/UL/BS EN 62368, UL61010 standards for EMCand safety.
FEATURE
  • Universal 85 - 264VAC or 120 - 370VDCInput voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -40℃to+70℃
  • High efficiency, high reliability
  • DC OK function
  • Built-in active PFC function
  • 150% peak load output for 3 seconds
  • LED indicator for power on
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • Safety according to IEC/UL/BS EN 62368  Operating altitude up to 5000m
  • OVC Ⅱ
  • Indoor use
Device AC/DC Convertor
Size W-41mm x H-110mm x D-124mm

Datasheet Download
