Product Details
DIN Rail Metal Case Switch Mode Power Supply with Active PFC. Input: 85 ~ 264VAC/120 - 370VDC. Output 48VDC @ 2.5A Hi Reliability (SDR-120-48)
METAL CASE SWITCH MODE POWER SUPPLY
OVERVIEW

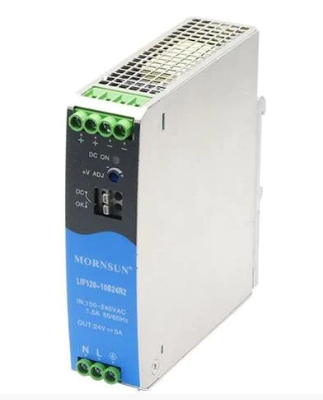

LIF120-10BxxR2 series is Mornsun AC-DC converter series featuring a cost-effective, energy efficient explosion-proof solutionfor standardDIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMCand safety specifications meet IEC/EN/UL/BS EN 62368, UL61010. These light weight AC-DC converters also have an extremelycompactdesign for space saving and are ideal for applications such as industrial control equipment, machinery, and all kinds of applicationsinaharsh environments.
FEATURE
- Universal 85 - 264VAC or 120 - 370 VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40℃ to +70℃
- High efficiency up to 94%, high reliability
- DC OK function
Active PFC - 150% peak load output for 3 seconds
- DC ON output status indicator LED
- Output short circuit, over-current, over-voltage,
over-temperature protection - Operating altitude up to 5000m
- OVCⅡ
- Indoor use
- Safety according to IEC/UL/BS EN 62368
ADDITIONAL INFORMATION
| Device | Power Supply |
| Type | Metal Case | Switch Mode |
| Input Voltage | 85 ~ 264VAC/120 - 370VDC |
| Output | 48VDC @ 2.5A |
| Size | W-32mm x H-110mm x D-124mm |
