DIN Rail Metal Case Switch Mode Power Supply with Active PFC. Input: 85 ~ 264VAC/120 - 370VDC. Output 12VDC @ 10A Hi Reliability. ATEX/Ex
METAL CASE SWITCH MODE POWER SUPPLY
OVERVIEW

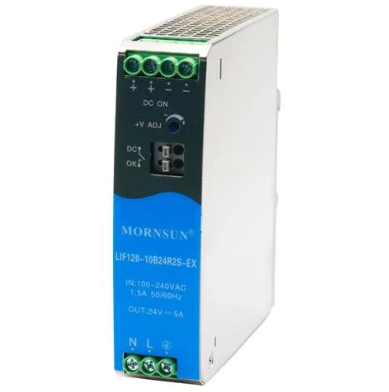

LIF120-10BxxR2S-EX is Mornsun AC-DC converter series featuring a cost-effective, energy efficient explosion-proof solutionfor standardDIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMCand safety specifications meet IEC/EN/UL62368, IEC/EN60079, UL61010. These light weight AC-DC converters also haveanextremelycompact design for space saving and are ideal for applications such as industrial control equipment, machinery, andall kindsofapplications in a harsh environments. The power supply meets the ’ec’ increased safety and ’nC’ enclosed-break type n explosion-proofcertification, and is suitable for explosive environments where the equipment protection level is Gc in zone 2.
FEATURE
Universal 85 - 264VAC or 120 - 370 VDC Input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -40℃ to +85℃
High efficiency, high reliability
DC OK function
DC ON output status indicator LED
Active PFC
Output short circuit, over-current, over-voltage, over-temperature protection
ATEX, IECEx increased safety type explosion-proof certification approved
