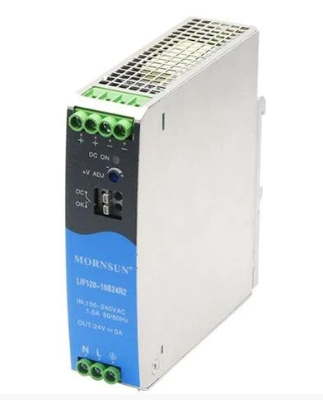

LIF120-10B12R2

METAL CASE SWITCH MODE POWER SUPPLY

OVERVIEW

LIF120-10BxxR2 series is Mornsun AC-DC converter series featuring a cost-effective, energy efficient explosion-proof solutionfor standardDIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMCand safety specifications meet IEC/EN/UL/BS EN 62368, UL61010. These light weight AC-DC converters also have an extremelycompactdesign for space saving and are ideal for applications such as industrial control equipment, machinery, and all kinds of applicationsinaharsh environments.

FEATURE

• Universal 85 - 264VAC or 120 - 370 VDC Input voltage
• Accepts AC or DC input (dual-use of same terminal)
• Operating ambient temperature range: -40℃ to +70℃
• High efficiency up to 94%, high reliability
• DC OK function
  Active PFC
• 150% peak load output for 3 seconds
• DC ON output status indicator LED
• Output short circuit, over-current, over-voltage,
  over-temperature protection
• Operating altitude up to 5000m
• OVCⅡ
• Indoor use
• Safety according to IEC/UL/BS EN 62368
