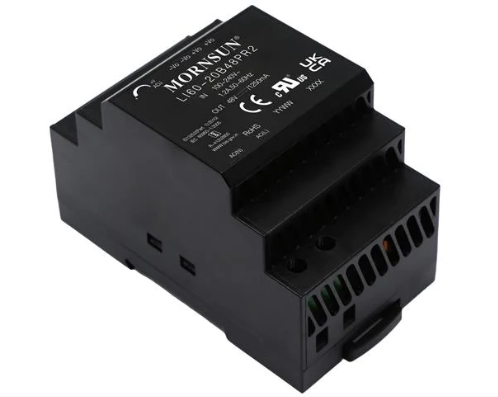

LI60-20B48PR2

DIN RAIL PLASTIC CASE SWITCH MODE POWER SUPPLY

OVERVIEW

LI60-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. Theproductsoffer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC and safety sepecifitionsmeetIEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These light weight AC-DC converters also have an extremelycompactdesign for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applicationsinaharsh environment

FEATURE

• Universal 85-264VAC or 120-370VDCinput voltage
• Accepts AC or DC input (dual-use of sameterminal)
• Operating ambient temperature range: -40℃to+70℃
• High I/O isolation test voltage up to 4000VAC
• Industrial-grade design
• OVC III (EN61558-1 standards)
• Low standby power consumption, high efficiency
• Low ripple & noise
• Output short circuit, over-current, over-voltageprotection
• Withstand 300VAC surge input for 5s
• DIN rail TS35X7.5/ TS35X15 mountable
• Safety according to EN61558
