DIN Rail Plastic Case Switch Mode Power Supply Input: 90 ~ 264VAC/120 - 370VDC. Output 12VDC @ 4,5A 4KVAC Isolation (HDR-60-12)
DIN RAIL PLASTIC CASE SWITCH MODE POWER SUPPLY
OVERVIEW

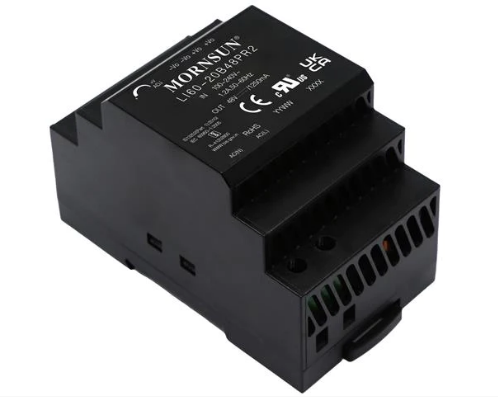

LI60-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. Theproductsoffer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC and safety sepecifitionsmeetIEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These light weight AC-DC converters also have an extremelycompactdesign for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applicationsinaharsh environment
FEATURE
Universal 85-264VAC or 120-370VDCinput voltage
Accepts AC or DC input (dual-use of sameterminal)
Operating ambient temperature range: -40℃to+70℃
High I/O isolation test voltage up to 4000VAC
Industrial-grade design
OVC III (EN61558-1 standards)
Low standby power consumption, high efficiency
Low ripple & noise
Output short circuit, over-current, over-voltageprotection
Withstand 300VAC surge input for 5s
DIN rail TS35X7.5/ TS35X15 mountable
Safety according to EN61558
SPECIFICATIONS
Type
DIN Rail Single Output
Output Power
54W
Series
LI60-20B
Part Number
LI60-20B12PR2
Mount
DIN-Rail
IP Level
Non-Waterproof
Output Voltage
12V
Output Current
4.5A
Input voltage range
85-264VAC; 120-370VDC
Inrush current (max.)
Cold start, 60A at 230VAC
Output voltage adjustable range
10.8-13.8V
Efficiency at 230VAC
88%
Max. capacitive load
10000µF
Input current (max.)
0.8A at 230VAC
Short circuit protection
Hiccup, continuous, self-recovery
Over-current protection
≥120% Io, self-recovery
Withstand voltage
300VAC
Working temperature
-40 - 70°C
Connection
Terminal block
Package dimensions
92.66 x 52 x 58 mm
Weight
175 gm
Cooling method
Free air convection
Case material
Plastic, heat-resistant (UL94V-0)
MTBF
>300000 Hrs
Safety class
CLASS II
Safety standards
UL62368/EN62368/IEC62368
EMC standards
CISPR32/EN55032 CLASS B, CISPR32/EN55032 CLASS B, IEC/EN61000-4-3 10V/m
