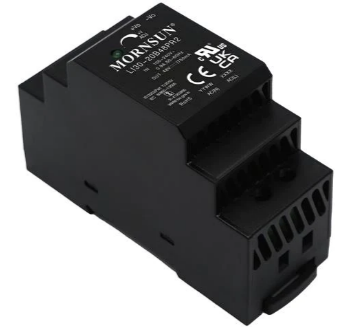

LI30-20B15PR2

LI30-20B15PR2

Regular price
Dhs. 79.56
Regular price
Sale price
Dhs. 79.56
Unit price
per
Availability
Sold out

DIN Rail Plastic Case Switch Mode Power Supply Input: 90 ~ 264VAC/127 - 370VDC. Output 15VDC @ 2A 4KVAC Isolation (HDR-30-15)

PLASTIC CASE SWITCH MODE POWER SUPPLY
OVERVIEW
LI30-20BxxPR2 is Mornsun’s AC-DC converter featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC are safety approved to IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These light weight AC-DC converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.
FEATURE
  • Universal 85 - 264VAC or 120 - 370VDC Input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -40℃ to +70℃
  • High I/O isolation test voltage up to 4000VAC
  • Industrial product technology design
  • Over-voltage class III (Designed to meet EN61558 safety standards)
  • Low standby power consumption, high efficiency
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • EN62368 safety approved
Device Power Supply
Type Plastic Case | Switch Mode
Input Voltage 90 ~ 264VAC/127 - 370VDC
Output 15VDC @ 2A
Size W-35mm x H-93mm x D-58mm


Datasheet Download
