Product Details
DIN Rail Plastic Case Switch Mode Power Supply Input: 90 ~ 264VAC/127 - 370VDC. Output 5VDC @ 3A 4KVAC Isolation (HDR-30-5)
PLASTIC CASE SWITCH MODE POWER SUPPLY
OVERVIEW

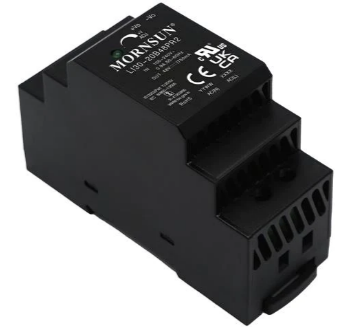

LI30-20BxxPR2 is Mornsun’s AC-DC converter featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC are safety approved to IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These light weight AC-DC converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.
FEATURE
- Universal 85 - 264VAC or 120 - 370VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40℃ to +70℃
- High I/O isolation test voltage up to 4000VAC
- Industrial product technology design
- Over-voltage class III (Designed to meet EN61558 safety standards)
- Low standby power consumption, high efficiency
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- EN62368 safety approved
SPECIFICATIONS
| Type | DIN Rail Single Output |
| Output Power | 15W |
| Series | LI30-20B |
| Part Number | LI30-20B05PR2 |
| Mount | DIN-Rail |
| IP Level | Non-Waterproof |
| Output Voltage | 5V |
| Output Current | 3A |
| Input voltage range | 85-264VAC; 120-370VDC |
| Inrush current (max.) | Cold start, 45A at 230VAC |
| Output voltage adjustable range | 4.9-5.5V |
| Efficiency at 230VAC | 82% |
| Max. capacitive load | 12000µF |
| Input current (max.) | 0.5A at 230VAC |
| Short circuit protection | Hiccup, continuous, self-recovery |
| Over-current protection | ≥120% Io, self-recovery |
| Withstand voltage | 300VAC |
| Working temperature | -40 - 70°C |
| Connection | Terminal block |
| Package dimensions | 92.66 x 35 x 58 mm |
| Weight | 115 gm |
| Cooling method | Free air convection |
| Case material | Plastic, heat-resistant (UL94V-0) |
| MTBF | >300000 Hrs |
| Safety class | CLASS II |
| Safety standards | UL62368/EN62368/IEC62368 |
| EMC standards | CISPR32/EN55032 CLASS B, CISPR32/EN55032 CLASS B, IEC/EN61000-4-3 10V/m |
| Certification | CE, RoHS |
ADDITIONAL INFORMATION
| Device | Power Supply |
| Type | Plastic Case | Switch Mode |
