DIN Rail Plastic Case Switch Mode Power Supply Input: 90 ~ 264VAC/120 - 370VDC. Output 48VDC @ 3,2A 4KVAC Isolation (HDR-150-48)
PLASTIC CASE SWITCH MODE POWER SUPPLY
OVERVIEW

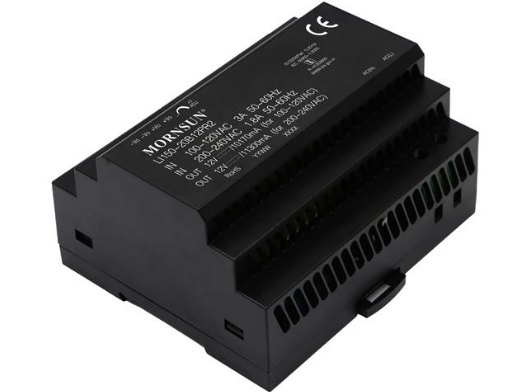

LI150-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. Theproductsoffer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC and safety sepecifitionsmeetIEC/EN61000-4, CISPR32, EN55032, UL/EN/IEC62368, IEC/EN60335, IEC61558, UL61010. These light weight AC-DC converters alsohaveanextremely compact design for space saving and are ideal for applications such as industrial control equipment machinery andall kindsofapplications in a harsh environment.
FEATURE
Universal 85-264VAC (277VAC available) or 120-370VDC (390VDC available) input voltage
Withstand 300VAC surge input for 5s
Operating ambient temperature range: -30℃ to +70℃ (can be start-up at -40℃)
High I/O isolation test voltage up to 4000VAC (Input output)
Over-voltage class III (Designed to meet EN61558 standards)
Low standby power consumption, low ripple & noise
High efficiency, high reliability
Output short circuit, over-current, over-voltage over-temperature protection
