DIN Rail Plastic Case Slim Profile Switch Mode Power Supply Input: 90 ~ 264VAC/127 - 370VDC. Output 5VDC @ 2,4A 4KVAC Isolation (HDR-15-5)
SLIM PROFILE SWITCH MODE POWER SUPPLY
OVERVIEW

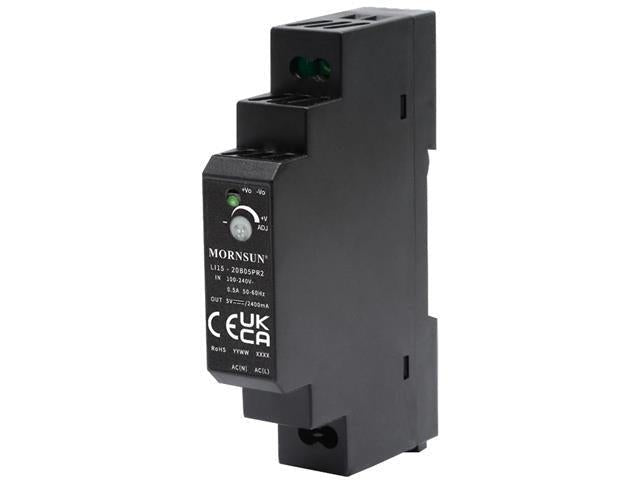

LI15-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC and safety specifications meet IEC/EN61000-4, CISPR32/EN55032, UL62368, EN62368, IEC62368, IEC/EN61010, IEC/EN61558 and IEC60335. These light weight AC-DC converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.
FEATURE
Universal 85-264VAC (277VAC available) or 120-370VDC (390VDC available) input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range -40℃to+70℃
High I/O isolation voltage up to 4000VAC
Industrial-grade design
OVC III (EN61558-1 standards)
Low standby power consumption, high efficiency
Low ripple & noise
Output short circuit, over-current, over-voltage protection
DIN rail TS35X7.5/ TS35X15 mountable
Safety according to UL/IEC62368, IEC/EN61010, IEC60335,IEC/EN61558
