DIN Rail Metal Case Slim Profile Switch Mode Power Supply Input: 90 ~ 264VAC/127 - 370VDC. Output 48VDC @ 2,5A. 4KVAC Isolation (NDR-120-48)
SLIM PROFILE SWITCH MODE POWER SUPPLY
OVERVIEW

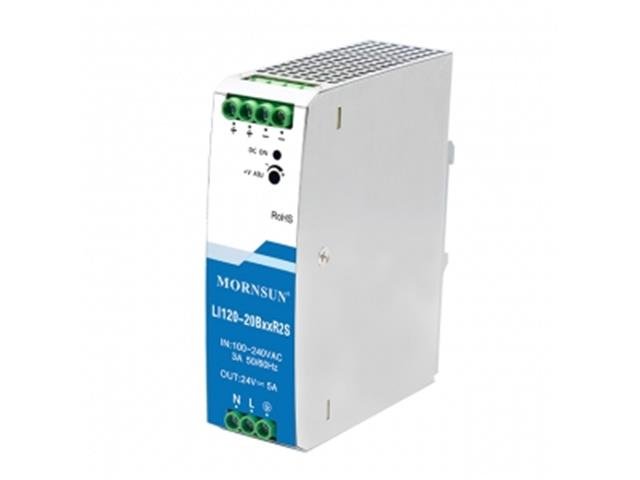

LI120-20B48R2S is Mornsun AC-DC converter series featuring a cost-effective, energy efficient green power supply solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise for industrial control equipment, machinery, and other industrial equipment in a variety of harsh environments. These light weight AC-DC converters have an extremely compact design and the standard rail installation for space saving. With good EMC performance, compliant with international UL61010, UL508, EN/BS EN 62368 standards for EMC and safety.
FEATURE
Universal 90 - 264VAC or 127 - 370VDC Input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -20℃ to +60℃
High I/O isolation test voltage up to 4000VAC
Low ripple & noise
Output short circuit, over-current, over-voltage, over-temperature protection
DIN rail TS-35/7.5 or 15 mountable
Ultra slim design: suitable for small chassis and narrow space installation
