Product Details
DIN Rail Metal Case Slim Profile Switch Mode Power Supply Input: 90 ~ 264VAC/127 - 370VDC. Output 24VDC @ 5A. 4KVAC Isolation (NDR-120-24)
SLIM PROFILE SWITCH MODE POWER SUPPLY
OVERVIEW

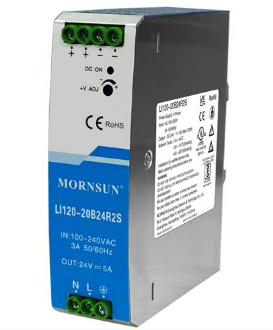

LI120-20B24R2S is Mornsun AC-DC converter series featuring a cost-effective, energy efficient green power supply solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise for industrial control equipment, machinery, and other industrial equipment in a variety of harsh environments. These light weight AC-DC converters have an extremely compact design and the standard rail installation for space saving. With good EMC performance, compliant with international UL61010, UL508, EN/BS EN 62368 standards for EMC and safety.
FEATURE
- Universal 90 - 264VAC or 127 - 370VDCInput voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -20℃to+60℃
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage, over-temperature protection
- DIN rail TS-35/7.5 or 15 mountable
- Ultra slim design: suitable for small chassis and narrow space installation
- Safety according to UL61010, UL508
SPECIFICATIONS
| Type | DIN Rail Single Output |
| Output Power | 120W |
| Series | LI120-20B |
| Part Number | LI120-20B24R2S |
| Mount | DIN-Rail |
| IP Level | Non-Waterproof |
| Output Voltage | 24V |
| Output Current | 5A |
ADDITIONAL INFORMATION
| Device | Power Supply |
| Type | Switch Mode | DIN Rail |
