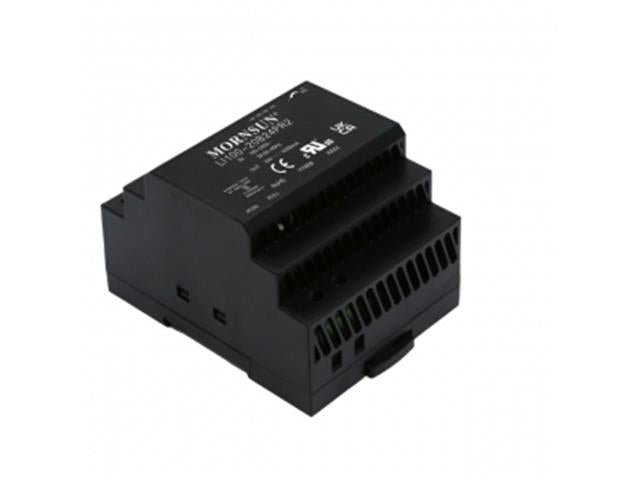

DIN Rail Plastic Case Switch Mode Power Supply Input: 90 ~ 264VAC/120 - 370VDC. Output 48VDC @ 2,1A 4KVAC Isolation
Plastic Case Switch Mode Power Supply
Feature
- Universal 85-264VAC or 120-370VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40℃ to +70℃
- High I/O isolation voltage up to 4000VAC
- ndustrial-grade design
- OVC III (EN61558-1 standards)
- Low standby power consumption, high efficiency
- Low ripple & noise
- Output short circuit, over-current, over-voltage
protection - Withstand 300VAC surge input for 5s
- DIN rail TS35X7.5/ TS35X15 mountable
- Safety according to EN61558
Downloads
Additional Information
| Device | Power Supply |
| Type | Plastic Case | Switch Mode |
| Input Voltage | 90 ~ 264VAC/120 - 370VDC |
| Output | 48VDC @ 2,1A |
| Size | W-70mm x H-93mm x D-58mm |
